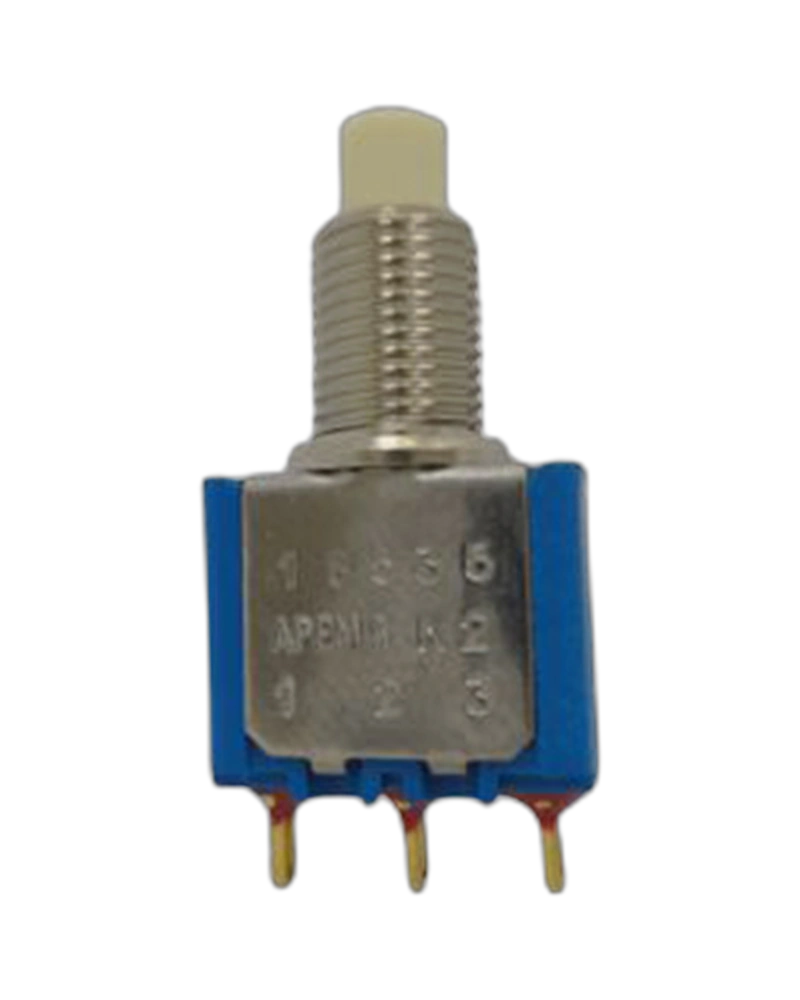

The APEM Panel Switches 18545CD is a double-pole, gold-plated brass contact switch designed for precise industrial control. With a dielectric strength of 1,000 Vrms 50 Hz min., 0.5 mm total travel, and 60,000 cycle electrical life, it ensures reliable operation in demanding environments. Ideal for applications requiring tactile feedback and robust solder lug terminals.
The APEM Panel Switches 18545CD is a high-reliability double-pole switch engineered for industrial automation systems. Featuring gold-plated brass contacts, this switch delivers precise tactile feedback, exceptional durability with 60,000 cycles at full load, and robust electrical performance including a dielectric strength of 1,000 Vrms 50 Hz min. and an initial contact resistance of 50 mΩ max. Its compact design with 5.85 mm length and 3.1 mm plungers ensures seamless integration into control panels while maintaining compatibility with solder lug terminals for reliable installation.
The 18545CD switch supports a maximum current of 100 mA at 30 VDC for resistive loads, ensuring compatibility with low-power industrial circuits. Its gold-plated brass contacts provide excellent conductivity and corrosion resistance, while the dielectric strength of 1,000 Vrms 50 Hz min. guarantees reliable isolation under high-voltage conditions.
With a compact length of 5.85 mm (0.230 in) and plungers measuring 3.1 mm (0.122 in), the 18545CD is designed for space-constrained panel installations. The switch features solder lug terminals for secure, low-resistance connections and a total travel of 0.5 mm (.019 in) for smooth operation.
Engineered to withstand extreme temperatures from -30 °C to +65 °C, the 18545CD operates effectively in harsh industrial environments. Its insulation resistance of 1,000 MΩ min. ensures long-term reliability even under demanding electrical conditions.
The switch supports snap-in panel mounting with tactile feedback, allowing for intuitive user interaction. Solder lug terminals facilitate straightforward installation, while the double-pole configuration enables control of two circuits with a single switch action.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), Length 5.85 mm (0.230in),Terminals And Bushing:Solder Lug Terminals |
| Length | 5.85 mm |
The APEMPanel Switches 18545CD is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), Length 5.85 mm (0.230in),Terminals And Bushing:Solder Lug Terminals |
| Length | 5.85 mm |
