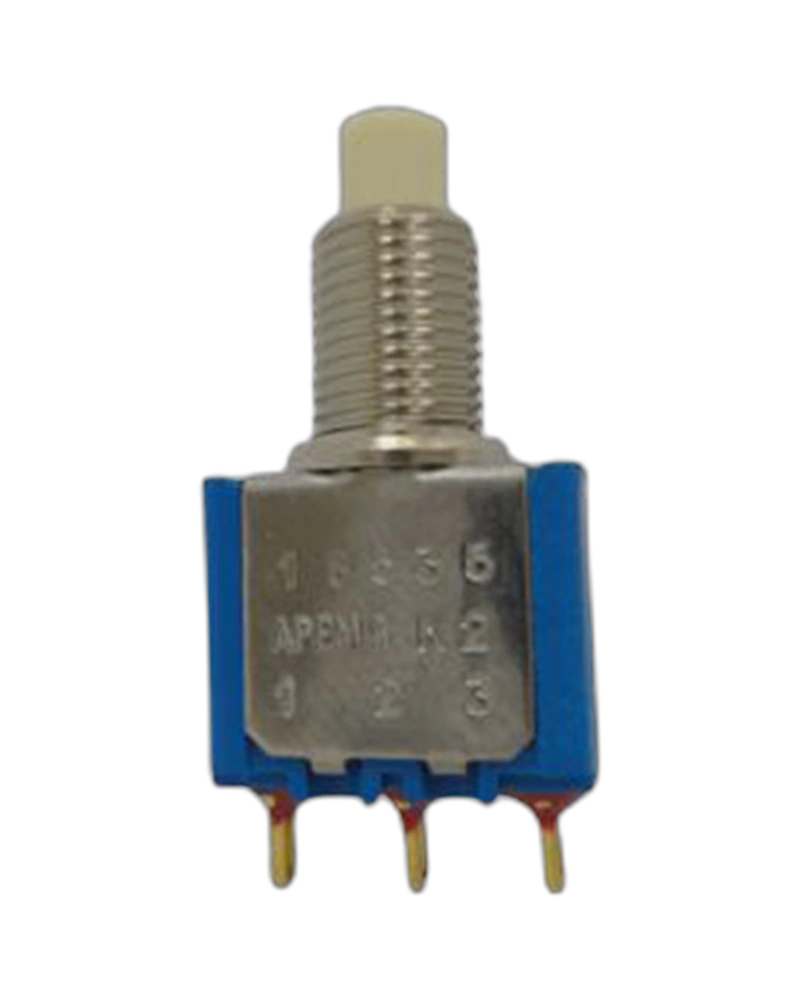

The APEM Panel Switches 18545AD is a double pole, silver (gold-plated) contact switch designed for precise control in industrial applications. With a dielectric strength of 1,000 Vrms 50 Hz min., 0.5 mm total travel, and 60,000 cycle electrical life, it offers reliable performance for demanding environments. Ideal for DC circuits up to 30 V with 1 A current handling.
The APEM Panel Switches 18545AD is a robust double-pole switch engineered for industrial automation systems. Featuring gold-plated silver contacts, this switch delivers high reliability with a dielectric strength of 1,000 Vrms 50 Hz min., ensuring safe operation in high-voltage environments. Its 0.5 mm total travel and tactile feedback provide precise control, while the 60,000 cycle electrical life guarantees long-term performance under continuous use. Designed for solder lug or straight PC mounting, the 18545AD is suitable for applications requiring precise switching in DC circuits up to 30 V with a maximum current of 1 A.
The 18545AD delivers reliable electrical performance with a dielectric strength of 1,000 Vrms 50 Hz min., ensuring robust insulation against electrical stress. Its initial contact resistance of 50 mΩ max. and insulation resistance of 1,000 MΩ min. maintain low resistance and high reliability during operation. The switch supports electrical life of 60,000 cycles at full load, making it ideal for applications requiring frequent switching without degradation.
With a total travel of 0.5 mm (.019 inches), the 18545AD provides precise mechanical movement for consistent switching action. The tactile feedback feature ensures a clear, immediate response to user input, enhancing usability in industrial control panels. The switch is designed for solder lug or straight PC mounting, offering flexibility in installation while maintaining secure connections.
Engineered to withstand extreme temperatures, the 18545AD operates effectively in environments ranging from -30 °C to +65 °C. This wide temperature range ensures reliable performance in both cold industrial settings and hot operational conditions, making it suitable for diverse applications across global markets.
The 18545AD is ideal for industrial control panels where precise, high-reliability switching is critical. Its double-pole configuration and 1 A current rating at 30 VDC make it suitable for applications such as motor control circuits, automation systems, and low-voltage DC power distribution where safety and durability are paramount.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
The APEMPanel Switches 18545AD is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
