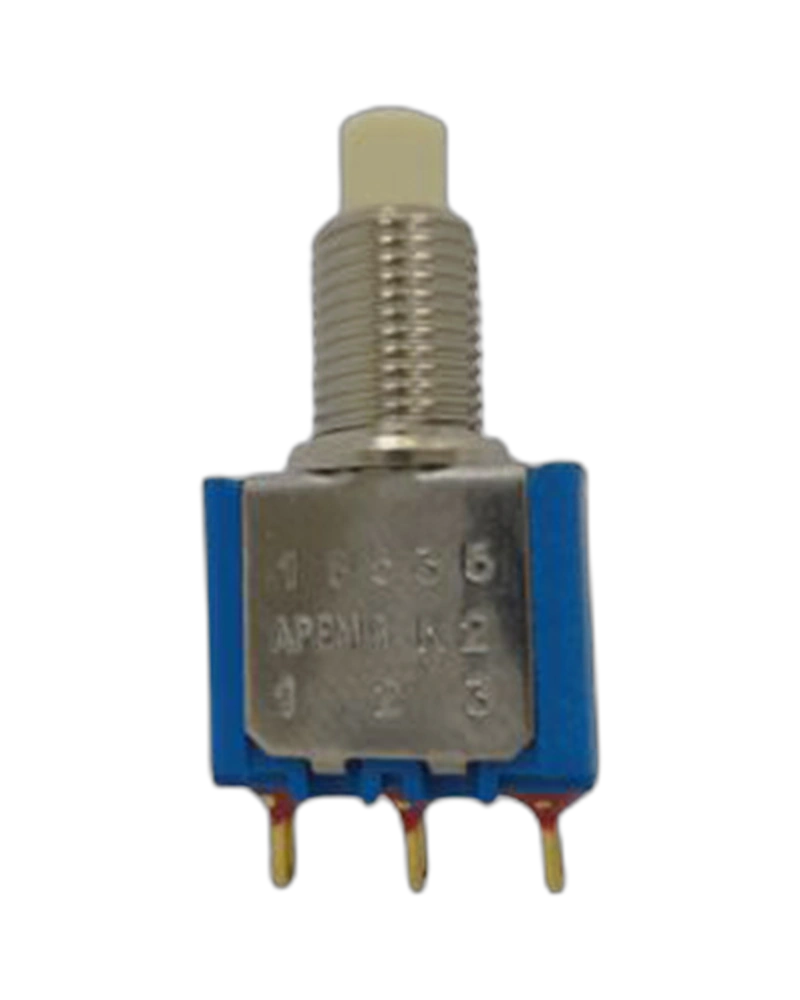

The 18245YCD Panel Switch is a versatile double pole pushbutton switch, ideal for controlling multiple circuits with reliable performance and seamless operation. Select Quantity
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
