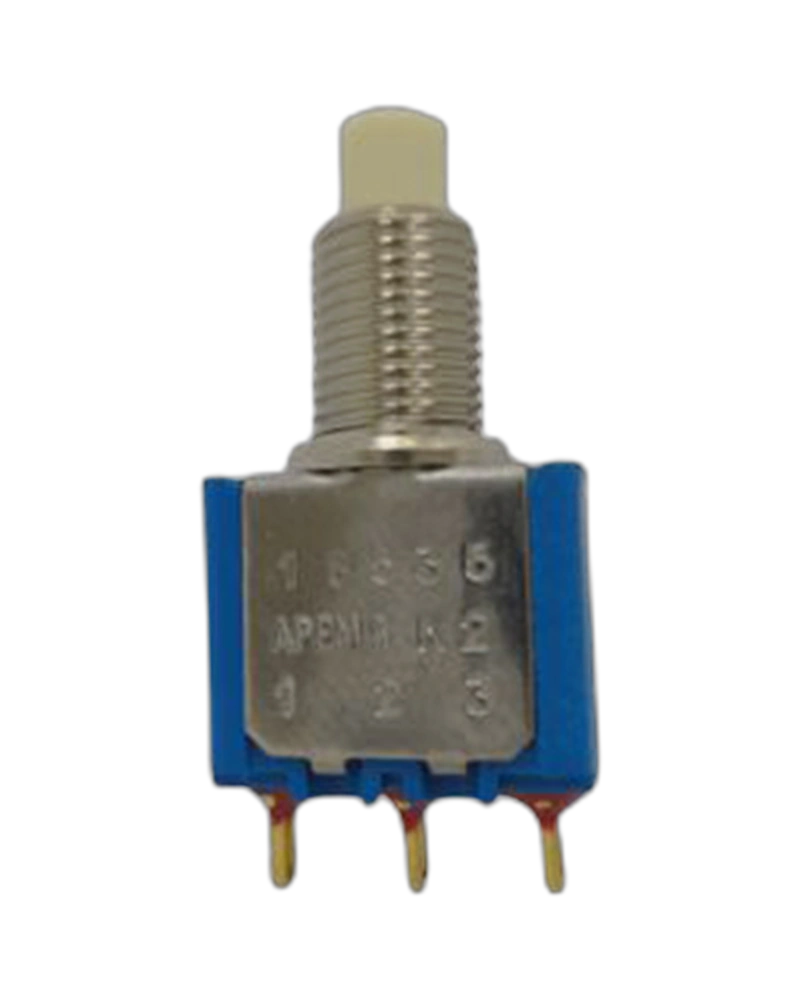

The APEM Panel Switches 18245WCD-3 is a double pole autoswitch designed for reliable residential and commercial applications. Featuring gold-plated brass contacts, 100 mA - 30 VDC rating for low-current circuits, and tactile feedback for precise operation, this switch ensures robust performance in demanding environments. With a dielectric strength of 1,000 Vrms 50 Hz min., it meets stringent electrical safety standards for industrial use.
The APEM Panel Switches 18245WCD-3 is a double pole autoswitch engineered for precise control in residential and commercial electrical systems. This switch delivers reliable operation with gold-plated brass contacts, ensuring low contact resistance (50 mΩ max.) and high electrical life (60,000 cycles at full load). Its tactile feedback mechanism provides immediate user confirmation during operation, while the snap-in panel mounting design simplifies installation. The switch operates within a temperature range of -30 °C to +65 °C, making it suitable for diverse environmental conditions. With a dielectric strength of 1,000 Vrms 50 Hz min., it meets rigorous electrical safety requirements for industrial applications.
The APEM Panel Switches 18245WCD-3 delivers precise electrical performance with gold-plated brass contacts rated for 100 mA - 30 VDC circuits. This configuration ensures low contact resistance (50 mΩ max.) and high electrical life (60,000 cycles at full load). The switch maintains a dielectric strength of 1,000 Vrms 50 Hz min., providing robust electrical isolation even under demanding conditions.
Engineered to withstand extreme temperatures, the switch operates effectively between -30 °C and +65 °C. This wide temperature range ensures reliable performance in both cold and hot environments, making it ideal for diverse industrial settings. The switch also features a total travel of 0.5 mm (.019) for smooth operation and a torque specification of 1.25 Nm (.922 Ft.lb) max. applied to nut for secure mounting.
The APEM Panel Switches 18245WCD-3 utilizes snap-in panel mounting with tactile feedback for easy installation and user-friendly operation. Straight PC terminals simplify wiring, while the 4mm (0.157in) plungers ensure precise contact alignment. Soldering is compatible with temperatures up to 300 °C for 3 seconds, allowing for flexible manufacturing processes.
With an insulation resistance of 1,000 MΩ min., the switch provides exceptional safety against electrical faults. The double pole configuration ensures simultaneous switching of both live and neutral circuits, reducing the risk of electrical hazards. The switch's electrical life of 60,000 cycles at full load guarantees long-term durability in high-use applications.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Number Of Poles | Double Pole,Contact Materials:Brass (Gold-Plated),Plungers:4mm (0.157in),Terminals And Bushing:Straight PC Terminals |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
The APEMPanel Switches 18245WCD-3 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Number Of Poles | Double Pole,Contact Materials:Brass (Gold-Plated),Plungers:4mm (0.157in),Terminals And Bushing:Straight PC Terminals |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
