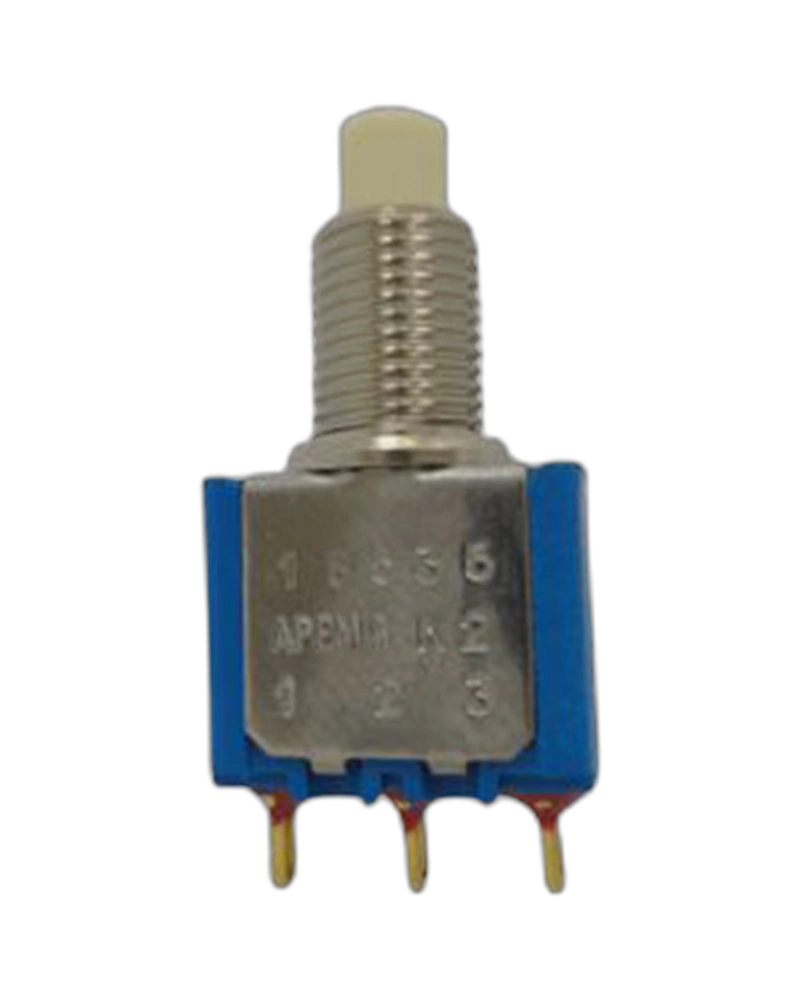

The 18235WWCD-6 is a versatile push-button switch designed for various electrical applications, featuring a single pole design for reliable on/off functionality. Select Quantity
| Feature | Specification |
|---|---|
| Length | 5.85 mm |
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), Length 5.85 mm (0.230in),Terminals And Bushing:Straight PC Terminals |
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
| Feature | Specification |
|---|---|
| Length | 5.85 mm |
