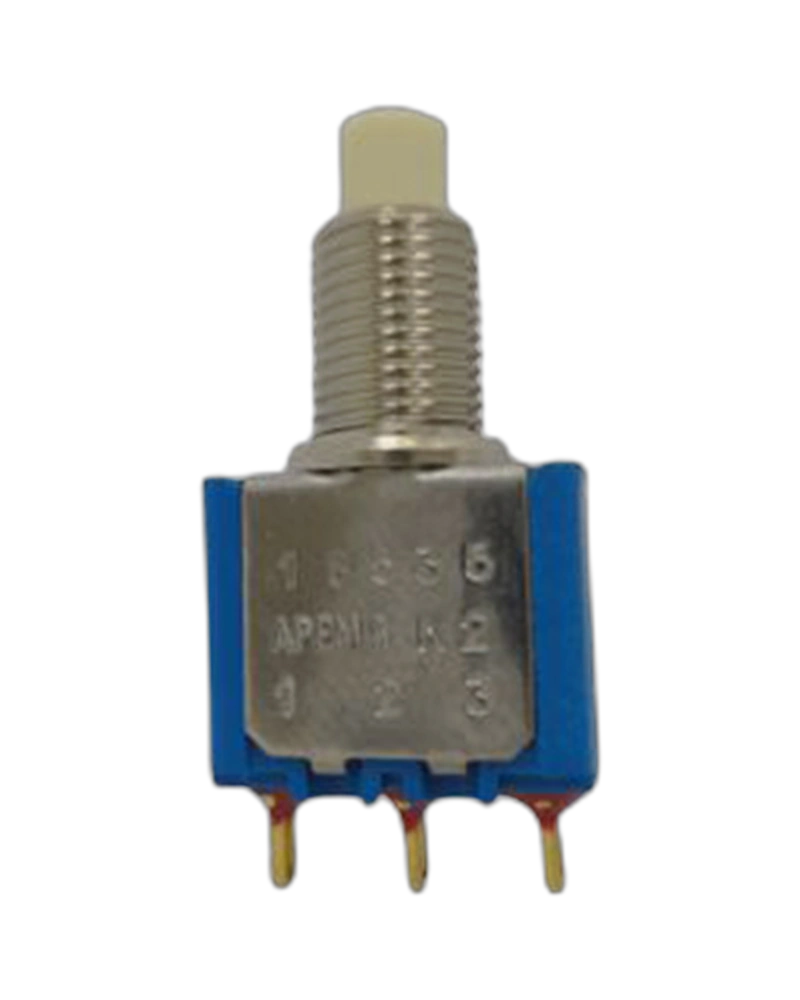

The APEM Panel Switches 18235WWCD-5 is a single pole autoswitch with gold-plated brass contacts designed for precise control in industrial applications. Featuring tactile feedback, snap-in panel mounting, and robust electrical specifications including 100 mA to 1 A current ratings with 30 VDC operation, this switch ensures reliable performance across -30°C to +65°C temperatures. Ideal for low-power DC circuits requiring high durability and tactile confirmation.
The APEM Panel Switches 18235WWCD-5 is a single pole autoswitch engineered for precise, reliable operation in demanding industrial environments. With gold-plated brass contacts, this switch delivers exceptional electrical performance, including a maximum contact resistance of 50 mΩ and an insulation resistance of 1,000 MΩ. Its snap-in panel mounting design provides tactile feedback for user confirmation, while the robust construction ensures durability across a wide temperature range from -30°C to +65°C. The switch supports electrical life of 60,000 cycles at full load and operates with a dielectric strength of 1,000 Vrms at 50 Hz, making it suitable for applications requiring precise control and high reliability in low-power DC circuits.
The APEM Panel Switches 18235WWCD-5 delivers precise electrical performance with gold-plated brass contacts rated for 100 mA to 1 A at 30 VDC. It maintains a maximum initial contact resistance of 50 mΩ and provides a dielectric strength of 1,000 Vrms at 50 Hz, ensuring reliable operation in low-power DC circuits. The switch also features an insulation resistance of 1,000 MΩ minimum, critical for maintaining safety and preventing electrical faults in industrial systems.
Engineered to withstand extreme conditions, the switch operates within a temperature range of -30°C to +65°C, making it suitable for both cold and hot industrial environments. Its robust construction ensures consistent performance across varying thermal conditions without compromising electrical integrity or mechanical stability.
The snap-in panel mounting design allows for quick and secure installation without tools, while the straight PC terminals with flat bushing ensure stable electrical connections. This configuration is ideal for integration into control panels and industrial equipment where space efficiency and ease of assembly are critical.
With an electrical life of 60,000 cycles at full load, the switch is designed for extended service in high-reliability applications. The gold-plated brass contacts resist wear and corrosion, ensuring consistent performance over time even in demanding industrial settings.
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), length 6.3 mm (0.248),Terminals And Bushing:Straight PC Terminals with Flat Bushing |
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON MOM |
The APEMPanel Switches 18235WWCD-5 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), length 6.3 mm (0.248),Terminals And Bushing:Straight PC Terminals with Flat Bushing |
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON MOM |
