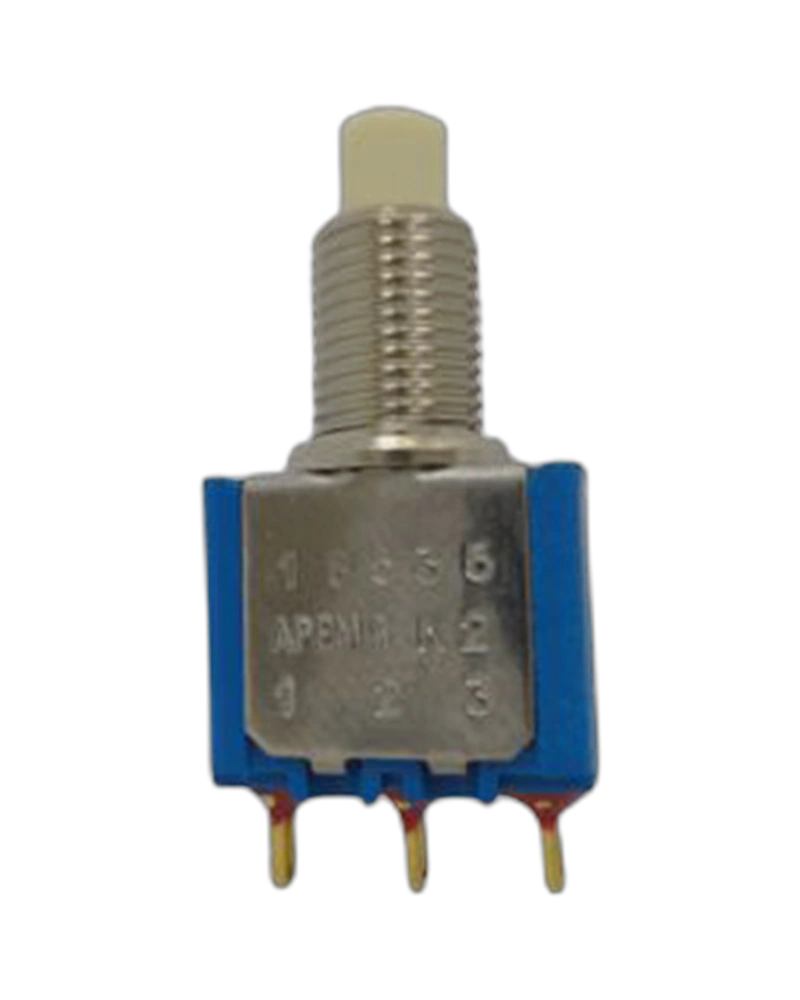

The APEM Panel Switches 18235WCD-5X386 is a single pole autoswitch designed for precise control in industrial applications. Featuring gold-plated brass contacts, it delivers reliable operation with a maximum current rating of 100 mA at 30 VDC and 1 A for silver-plated contacts. This snap-in panel mount switch provides tactile feedback and robust performance across temperatures from -30°C to +65°C.
The APEM Panel Switches 18235WCD-5X386 is a single pole autoswitch engineered for high-reliability industrial control systems. This snap-in panel mount switch features gold-plated brass contacts that ensure low contact resistance (50 mΩ max) and excellent electrical performance, including dielectric strength of 1,000 Vrms at 50 Hz. Designed for environments ranging from -30°C to +65°C, it supports up to 60,000 cycles of operation with minimal wear, making it ideal for applications requiring precise switching under demanding conditions.
The APEM Panel Switches 18235WCD-5X386 delivers precise electrical performance with a dielectric strength of 1,000 Vrms at 50 Hz, ensuring reliable isolation under high-voltage conditions. It supports up to 60,000 cycles of operation with a maximum contact resistance of 50 mΩ, maintaining consistent performance even after repeated use. The switch is rated for 100 mA at 30 VDC with gold-plated brass contacts, providing a balance of durability and low-power applications.
Engineered for industrial environments, this switch operates effectively across a wide temperature range from -30°C to +65°C. Its robust construction ensures reliable performance in both extreme cold and high-heat conditions, making it suitable for applications in harsh industrial settings. The switch also features an insulation resistance of 1,000 MΩ min., ensuring long-term stability in electrical systems.
The APEM Panel Switches 18235WCD-5X386 utilizes a snap-in panel mounting design with straight PC terminals, allowing for quick and secure installation without tools. Its height of 99 mm and threaded bushing of 6.35 mm (1.4 in) provide compatibility with standard panel mounting systems, ensuring easy integration into existing industrial control panels.
With an electrical life of 60,000 cycles at full load, this switch is designed for long-term reliability in demanding applications. The gold-plated brass contacts resist corrosion and wear, while the 1.25 Nm torque specification ensures consistent terminal connections without damage. The switch also supports soldering at 300 °C for 3 seconds, facilitating maintenance and repair without compromising performance.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Number Of Poles | Single Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), length 6.3 mm (0.248),Terminals And Bushing:Straight PC Terminals,Special |
| Options | Threaded Bushing 6.35mm (1.4in) Height 99 mm (3.89in) |
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Operating temperature | -30 °C to +65 °C |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON |
| Feature | Specification |
|---|---|
| Height | 99 mm |
