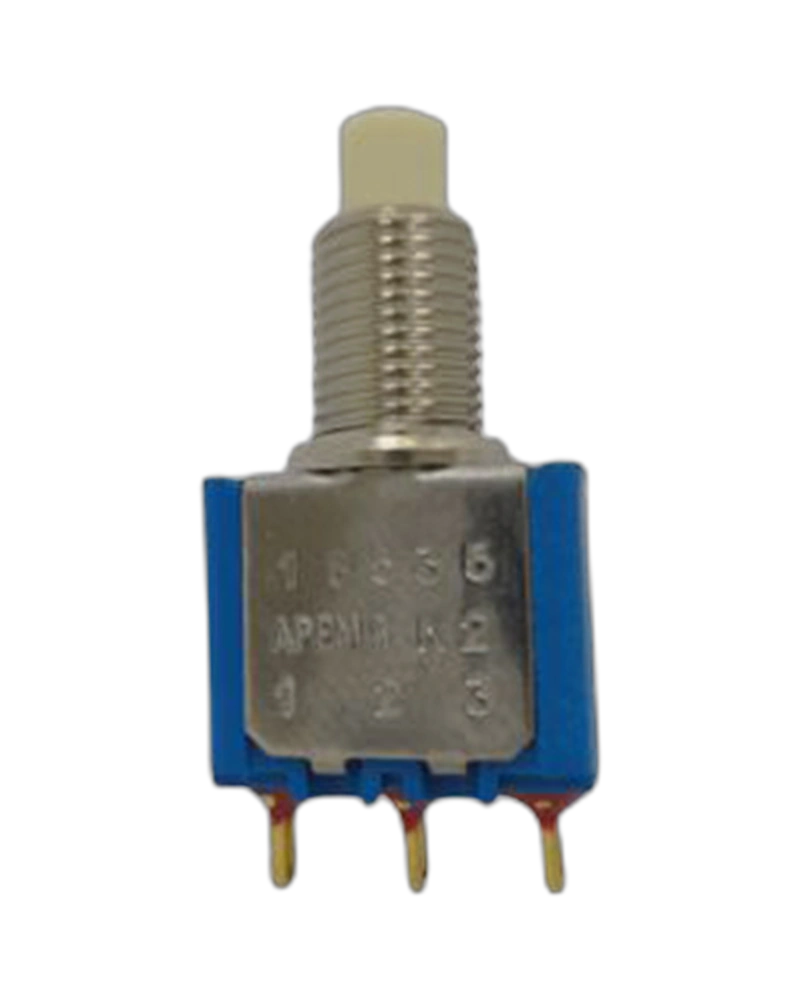

The APEM Panel Switches 18235WAD-3 is a single pole autoswitch designed for precise control in industrial applications. Featuring gold-plated silver contacts, it supports up to 1 A at 30 VDC with tactile feedback and snap-in panel mounting. This switch delivers reliable performance with a maximum current rating of 100 mA at 30 VDC for resistive loads, ensuring robust operation in demanding environments.
The APEM Panel Switches 18235WAD-3 is a single pole autoswitch engineered for precise, reliable control in industrial automation systems. With gold-plated silver contacts, it provides a maximum current rating of 1 A at 30 VDC for general applications and 100 mA at 30 VDC for resistive loads, ensuring compatibility with a wide range of electrical systems. The switch features tactile feedback for immediate user confirmation, snap-in panel mounting for quick installation, and a total travel of 0.5 mm for smooth operation. Designed to withstand harsh industrial conditions with an operating temperature range of -30 °C to +65 °C, this switch meets stringent electrical and mechanical requirements for long-term durability.
The APEM Panel Switches 18235WAD-3 operates within a maximum current rating of 1 A at 30 VDC for general applications and 100 mA at 30 VDC for resistive loads. It features gold-plated silver contacts that ensure low contact resistance (50 mΩ max.) and high durability. The switch maintains a dielectric strength of 1,000 Vrms at 50 Hz, providing robust protection against electrical faults. Additionally, it supports electrical life of 60,000 cycles at full load, ensuring long-term reliability in industrial environments.
This switch has a total travel of 0.5 mm (.019 inches) for smooth operation and a plungers size of 4 mm (0.157 inches). The snap-in panel mounting design allows for quick installation without tools, while the tactile feedback feature provides immediate user confirmation during operation. The switch is engineered to withstand operating temperatures ranging from -30 °C to +65 °C, making it suitable for extreme environmental conditions.
The APEM Panel Switches 18235WAD-3 utilizes snap-in panel mounting for straightforward installation. Its straight PC terminals with flat bushing ensure secure connections and compatibility with standard panel mounting systems. The switch is designed for easy integration into industrial control panels, with no additional tools required for mounting due to the snap-in mechanism.
Engineered for industrial use, the switch operates effectively in temperatures ranging from -30 °C to +65 °C. It features an insulation resistance of 1,000 MΩ min., ensuring minimal leakage current even under high-voltage conditions. The switch also includes a soldering temperature of 300 °C for 3 seconds max., facilitating reliable soldering during installation without damaging the contacts.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON MOM |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Number Of Poles | Single Pole,Contact Materials:Silver (Gold-Plated),Plungers:4mm (0.157in),Terminals And Bushing:Straight PC Terminals with Flat Bushing |
| Operating temperature | -30 °C to +65 °C |
The APEMPanel Switches 18235WAD-3 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe |
| Max. current/voltage rating with resistive load | - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC |
| Electrical Functions | ON MOM |
| Feature | Specification |
|---|---|
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Number Of Poles | Single Pole,Contact Materials:Silver (Gold-Plated),Plungers:4mm (0.157in),Terminals And Bushing:Straight PC Terminals with Flat Bushing |
| Operating temperature | -30 °C to +65 °C |
