Explore performance details, construction highlights, applications, and technical information in one clear overview.

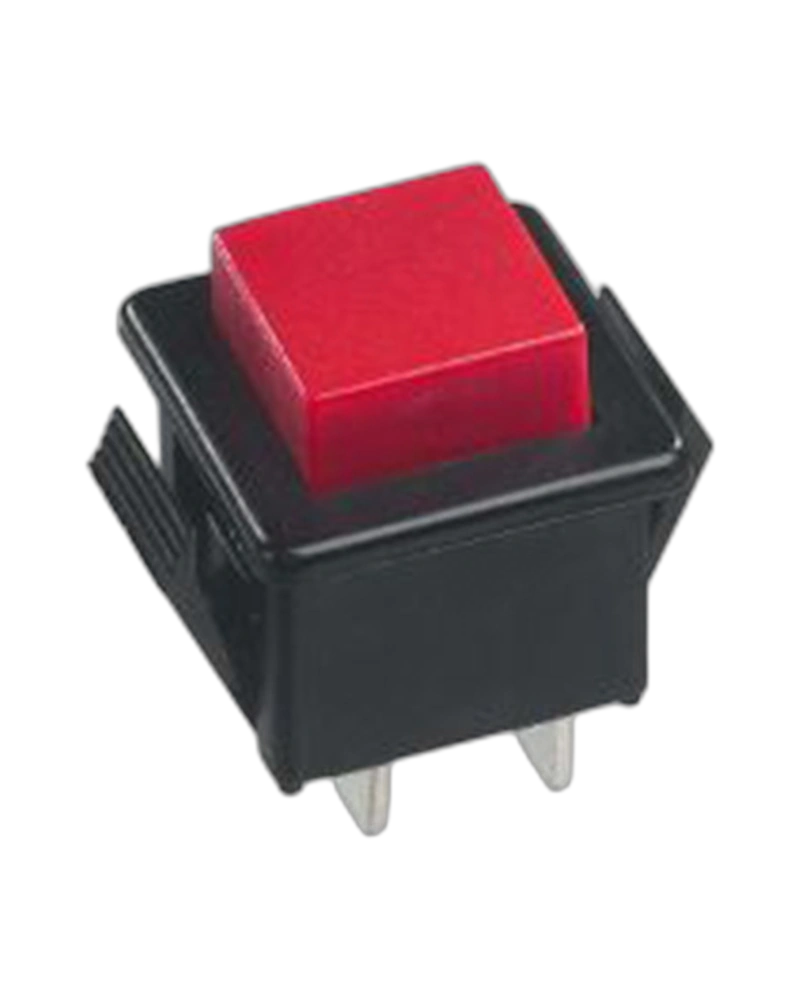

The APEM Panel Switches 1445NA2 are robust autoswitches designed for industrial applications. These switches feature butt action contacts, double break solder lugs, and straight PC terminals with a 1,000 MΩ min. insulation resistance at 500 VDC. They support 10,000 cycles at full load and operate within -20 °C to +55 °C.
The APEM Panel Switches 1445NA2 are precision-engineered autoswitches designed for reliable operation in demanding industrial environments. With a 1,000 MΩ min. insulation resistance at 500 VDC and a dielectric strength of 1,500 Vrms 50 Hz between terminals, these switches ensure electrical safety and durability. The switches deliver 10,000 cycles of electrical life at full load and function across a wide temperature range from -20 °C to +55 °C. Their silver contacts (A) support 6 A 12 VDC, while silver-plated copper contacts (C) handle 3 A 12 VDC with resistive loads. The panel switches feature butt action contacts, double break solder lugs, straight PC terminals, and quick-connect options for seamless integration into control systems.
The APEM Panel Switches 1445NA2 meet stringent electrical requirements with a minimum insulation resistance of 1,000 MΩ at 500 VDC and a dielectric strength of 1,500 Vrms 50 Hz between terminals. The switches support 10,000 cycles of electrical life at full load and operate within a temperature range of -20 °C to +55 °C. For resistive loads, the silver contacts (A) handle up to 6 A 12 VDC, while silver-plated copper contacts (C) manage 3 A 12 VDC.
Engineered for durability, the Panel Switches 1445NA2 utilize butt action contacts with double break solder lugs and straight PC terminals. The quick-connect terminals ensure rapid installation and reliable connections, while the 2 mm panel thickness provides structural integrity without compromising performance.
These switches deliver consistent performance across industrial conditions, with a wide operating temperature range from -20 °C to +55 °C. The 10,000-cycle electrical life ensures long-term reliability in high-demand applications, and the low initial contact resistance of 10 mΩ minimizes power loss during operation.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Electrical Functions | Changeover |
| Mounting | Straight PC Terminals |
The APEMPanel Switches 1445NA2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Electrical Functions | Changeover |
| Mounting | Straight PC Terminals |
