The APEM Panel Switches 1415NA6 is a robust changeover switch designed for industrial applications. Featuring silver contacts (6 A 12 VDC) and silver-plated copper contacts (3 A 12 VDC), it delivers reliable performance with an initial contact resistance of 10 mΩ and electrical life of 10,000 cycles at full load. Ideal for demanding environments with operating temperatures from -20°C to +55°C.

Product Overview

The APEM Panel Switches 1415NA6 is a high-reliability changeover switch engineered for industrial control systems. This panel switch combines precise electrical performance with durable construction to ensure consistent operation in harsh conditions. With a 2 mm panel thickness and optimized terminal design, it supports reliable switching of low-voltage circuits while maintaining exceptional insulation and dielectric strength ratings. The switch is specifically designed for applications requiring precise control and long-term operational stability in industrial machinery and automation systems.

Electrical Performance

The APEM Panel Switches 1415NA6 delivers precise electrical performance with a changeover function. It supports a maximum current of 6 A at 12 VDC for silver contacts and 3 A at 12 VDC for silver-plated copper contacts. The initial contact resistance of 10 mΩ ensures minimal voltage drop during operation, while the electrical life of 10,000 cycles at full load guarantees long-term reliability in industrial applications.

Environmental and Operational Specifications

Engineered for demanding environments, the switch operates within a temperature range of -20 °C to +55 °C. Its robust construction includes a 2 mm panel thickness and high insulation resistance (1,000 MΩ min. at 500 VDC), ensuring stable performance across a wide range of industrial conditions. The dielectric strength ratings (1,500 Vrms 50 Hz min. between terminals and 2,000 Vrms 50 Hz min. between terminals and metal panel) provide exceptional protection against electrical faults.

Terminal and Connection Design

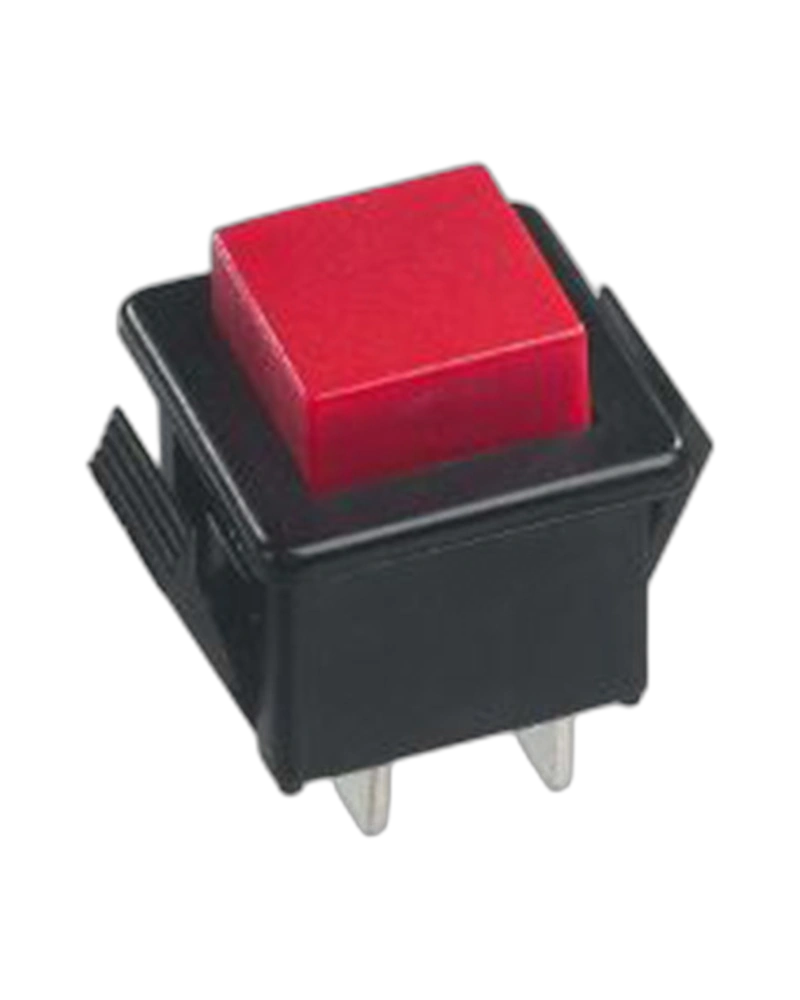

The switch features butt action contacts with double break solder lug and straight PC terminals, enabling secure and reliable connections. The quick-connect terminals simplify installation and maintenance while maintaining high contact integrity. The red plunger color provides clear visual identification, reducing errors during system configuration and troubleshooting.

Application Relevance

The APEM Panel Switches 1415NA6 is ideal for industrial control panels, automation systems, and machinery requiring precise switching functions. Its compatibility with low-voltage DC circuits and robust electrical specifications make it suitable for applications such as motor control, sensor interfaces, and process automation where reliability and durability are critical.

Technical Specifications

Product Summary

The APEMPanel Switches 1415NA6 is presented using the documented product characteristics available for this model.
