Explore performance details, construction highlights, applications, and technical information in one clear overview.

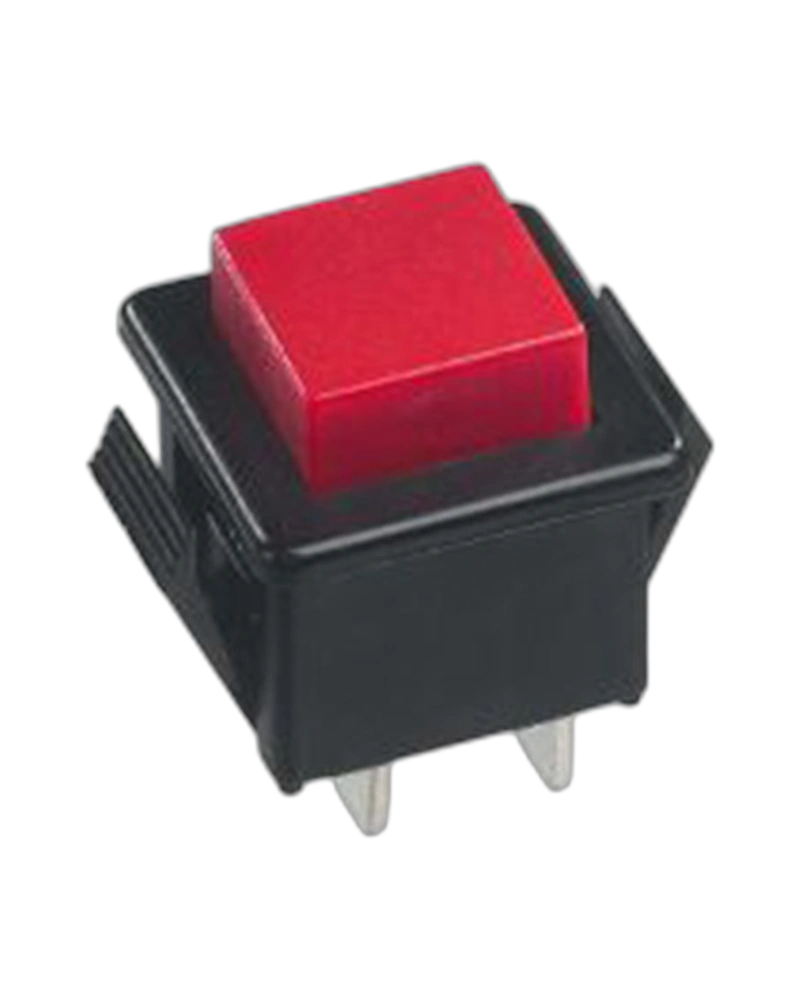

The APEM Panel Switches 1415NA2 is a robust autoswitch designed for industrial applications. Featuring 1,000 MΩ min. insulation resistance at 500 VDC, 1,500 Vrms dielectric strength, and 10 mΩ initial contact resistance, this switch ensures reliable performance in demanding environments. With electrical life up to 10,000 cycles and operating temperatures from -20 °C to +55 °C, it meets stringent industrial requirements for durability and precision.
The APEM Panel Switches 1415NA2 is a high-reliability autoswitch engineered for industrial control systems. This switch delivers precise electrical switching with silver contacts (A) rated for 6 A 12 VDC and silver-plated copper contacts (C) for 3 A 12 VDC, ensuring compatibility across a range of industrial loads. Its robust construction includes butt action contacts, double break solder lugs, and straight PC terminals with quick-connect features, providing reliable operation in harsh conditions. The switch maintains exceptional electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 1,500 Vrms 50 Hz between terminals, while enduring 10,000 cycles of operation under full load conditions.
The APEM Panel Switches 1415NA2 delivers precise electrical switching with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 1,500 Vrms 50 Hz between terminals. This ensures reliable isolation and safety in high-voltage environments. The switch maintains low contact resistance (10 mΩ) and supports up to 10,000 cycles of operation under full load conditions, making it ideal for applications requiring consistent performance over time.
Engineered to withstand extreme conditions, the Panel Switches 1415NA2 operates within a temperature range of -20 °C to +55 °C. This wide operational range ensures reliable performance in both cold and hot industrial environments, from refrigeration systems to high-temperature manufacturing processes.
The switch features two contact types: silver contacts (A) rated for 6 A 12 VDC and silver-plated copper contacts (C) for 3 A 12 VDC. This dual-rating system accommodates a variety of load types while maintaining high conductivity and durability for long-term use.
With straight PC and quick-connect terminals, the Panel Switches 1415NA2 simplifies installation and maintenance. The double break solder lugs and butt action contacts ensure secure connections and minimize the risk of arcing or contact failure during operation.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Electrical Functions | Changeover |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
The APEMPanel Switches 1415NA2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Electrical Functions | Changeover |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
