The APEM Panel Switches 1412NA6 is a robust autoswitch designed for industrial applications. Featuring NC3 electrical functions, 1,000 MΩ insulation resistance at 500 VDC, and 10 mΩ initial contact resistance, this switch ensures reliable operation in demanding environments. With a maximum current rating of 6 A 12 VDC for silver contacts, it delivers precise control for critical systems.
The APEM Panel Switches 1412NA6 is a high-performance autoswitch engineered for industrial control systems. This switch combines exceptional electrical reliability with durable construction to meet stringent operational demands. Its NC3 electrical function ensures precise switching behavior, while the 1,000 MΩ insulation resistance at 500 VDC and 10 mΩ initial contact resistance guarantee minimal signal degradation and consistent performance. Designed for environments ranging from -20 °C to +55 °C, the switch supports 10,000 cycles at full load with robust terminal connections that include solder lugs and quick-connect terminals for easy installation and maintenance.
The APEM Panel Switches 1412NA6 delivers reliable electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and a dielectric strength of 1,500 Vrms 50 Hz between terminals. This ensures robust protection against electrical faults and high-voltage transients in industrial settings. The switch also features a low initial contact resistance of 10 mΩ, minimizing voltage drop during operation and maintaining signal integrity.
Engineered for long-term durability, the Panel Switches 1412NA6 supports 10,000 cycles at full load, making it suitable for applications requiring frequent switching without degradation. Its operating temperature range of -20 °C to +55 °C ensures consistent performance across extreme environmental conditions, from cold industrial warehouses to hot manufacturing floors.

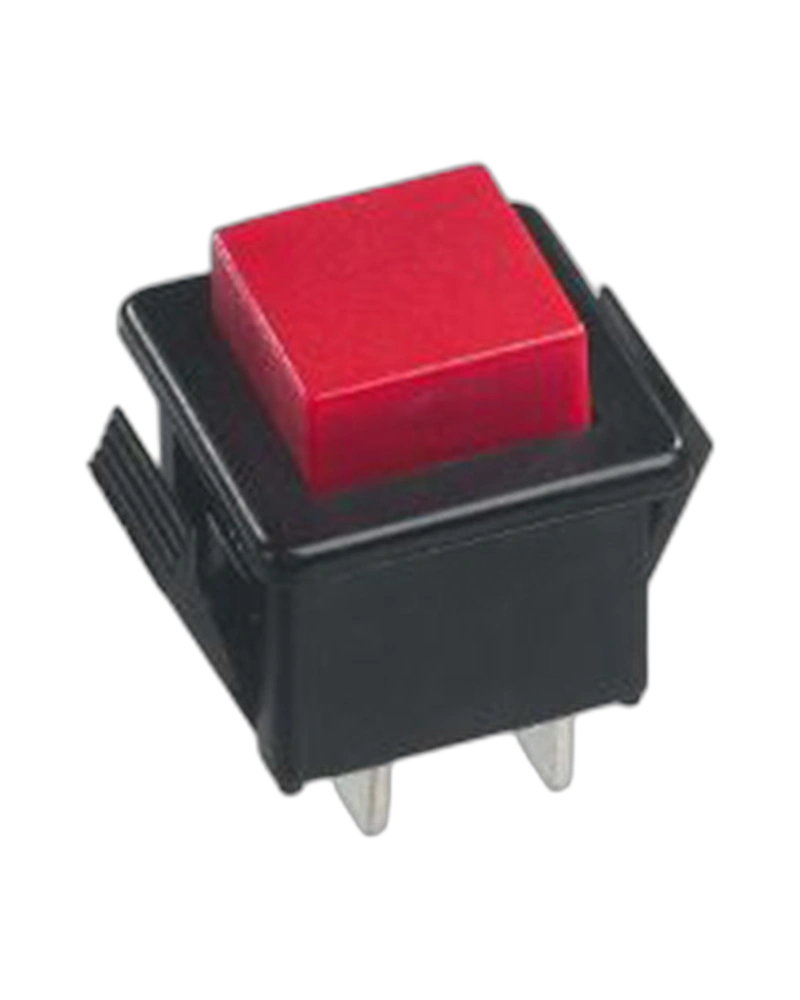

The switch utilizes solder lug terminals with straight PC and quick-connect features, enabling efficient installation and maintenance. This design simplifies wiring and reduces the risk of connection errors while maintaining secure electrical contact. The plunger color (red) provides visual confirmation of the switch state, aiding in quick identification during system checks.
With a maximum current rating of 6 A 12 VDC for silver contacts and 3 A 12 VDC for silver-plated copper contacts, the Panel Switches 1412NA6 accommodates a range of load types. This ensures compatibility with both low-power and moderate-power industrial circuits while maintaining safety and efficiency.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
The APEMPanel Switches 1412NA6 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
