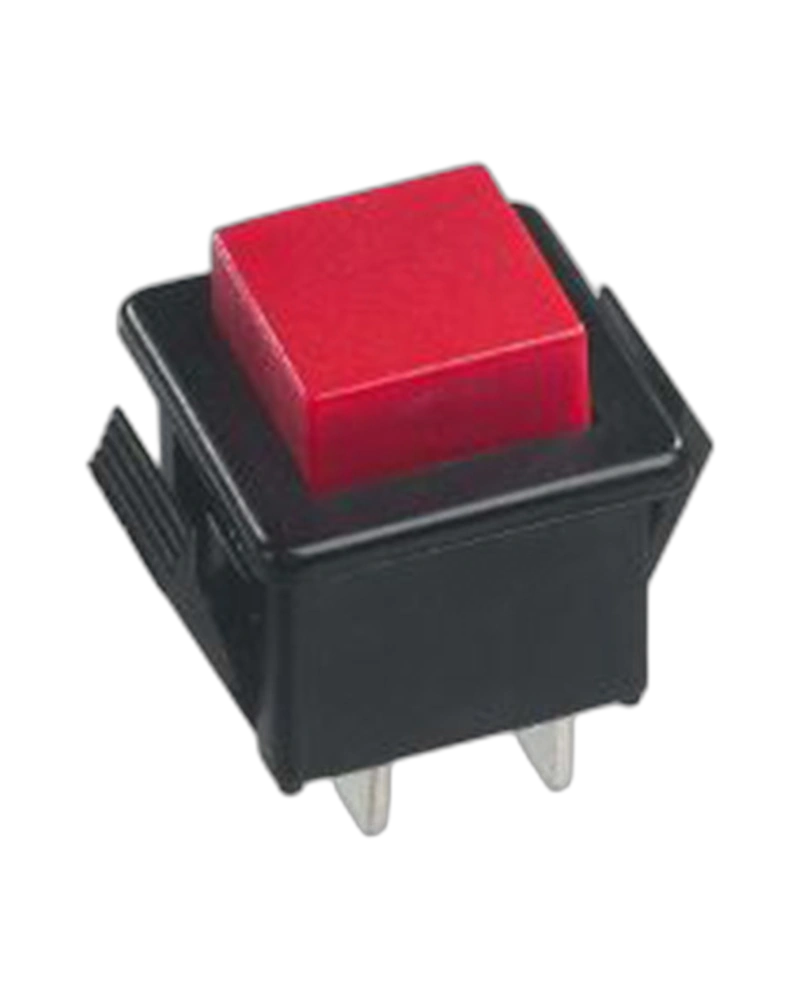

The APEM Panel Switches 1412NA3 is a robust autoswitch designed for industrial applications. Featuring NC3 electrical functions, 1,000 MΩ insulation resistance at 500 VDC, and 10 mΩ initial contact resistance, this switch ensures reliable operation in demanding environments. Ideal for systems requiring precise control with a 10,000-cycle electrical life and -20 °C to +55 °C temperature range.
The APEM Panel Switches 1412NA3 is a high-reliability autoswitch engineered for industrial control systems. This switch delivers precise NC3 electrical functionality with exceptional electrical performance, including 1,000 MΩ minimum insulation resistance at 500 VDC and 10 mΩ initial contact resistance. Designed for durability, it supports 10,000 cycles at full load and operates within a wide temperature range of -20 °C to +55 °C. The switch features solder lug terminals, straight PC connections, and quick-connect terminals for seamless integration into industrial equipment.
The APEM Panel Switches 1412NA3 delivers robust electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 1,500 Vrms 50 Hz between terminals. It supports 10 mΩ initial contact resistance and operates reliably with a 10,000-cycle electrical life at full load. The switch is rated for 6 A 12 VDC with silver contacts and 3 A 12 VDC with silver-plated copper contacts for resistive loads.
Engineered for industrial environments, the Panel Switches 1412NA3 operates within a temperature range of -20 °C to +55 °C. This ensures reliable performance in extreme conditions, making it suitable for applications across diverse industrial settings.
The switch features solder lug terminals with straight PC and quick-connect terminals, enabling efficient installation and maintenance. The plunger color is green, and the panel thickness is 2 mm (max), providing a compact and durable solution for panel mounting.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
The APEMPanel Switches 1412NA3 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
| Feature | Specification |
|---|---|
| Panel thickness | 2 mm (.078) max |
