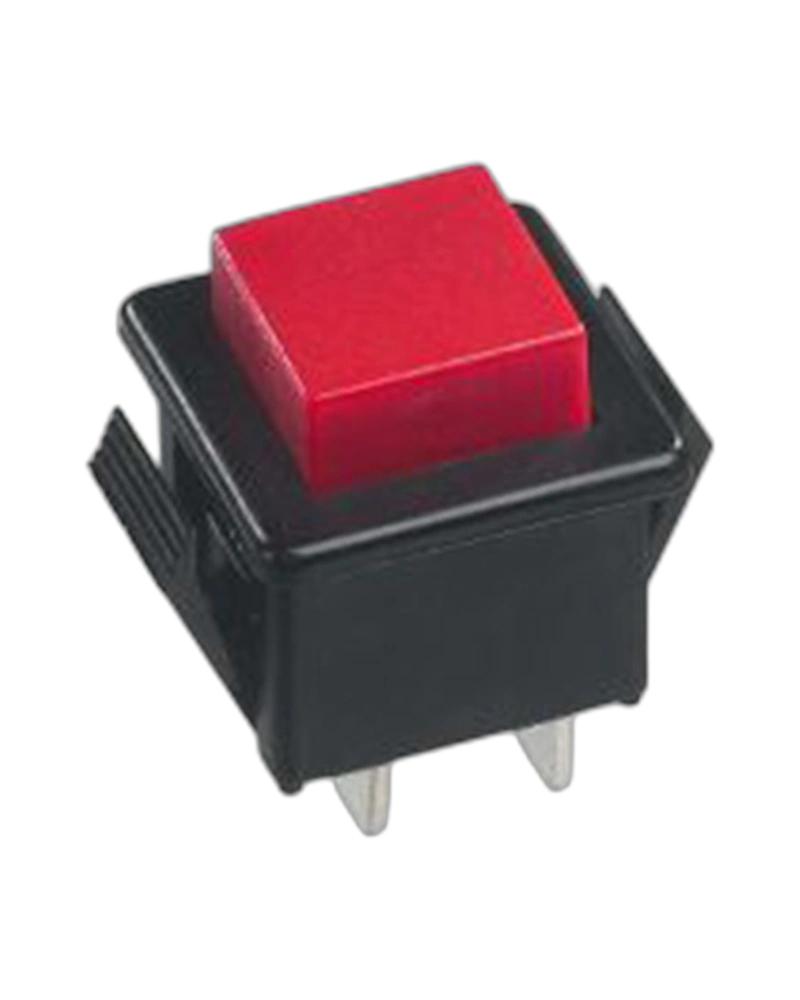

The APEM Panel Switches 1412NA2 is a robust autoswitch designed for industrial applications. Featuring insulated contacts with a minimum 1,000 MΩ resistance at 500 VDC and dielectric strength up to 1,500 Vrms 50 Hz, this switch ensures reliable operation in demanding environments. With a 10,000-cycle electrical life and operating temperatures from -20°C to +55°C, it delivers precise control for resistive loads up to 6 A at 12 VDC.
The APEM Panel Switches 1412NA2 is a high-reliability autoswitch engineered for industrial control systems. This switch combines precise electrical performance with rugged construction to meet stringent operational demands. Its insulated contacts provide a minimum insulation resistance of 1,000 MΩ at 500 VDC and withstand dielectric strength tests up to 1,500 Vrms 50 Hz between terminals, ensuring safety and durability in electrical environments. Designed for resistive loads, the switch supports currents up to 6 A at 12 VDC with silver contacts and 3 A at 12 VDC with silver-plated copper contacts, while maintaining an electrical life of 10,000 cycles at full load. The switch operates effectively across a wide temperature range from -20°C to +55°C, making it suitable for diverse industrial settings.
The APEM Panel Switches 1412NA2 delivers precise electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 1,500 Vrms 50 Hz between terminals. This ensures reliable operation in high-voltage environments while maintaining safety standards. The switch supports electrical life of 10,000 cycles at full load, making it ideal for applications requiring frequent switching without degradation.
Designed for resistive loads, the Panel Switches 1412NA2 operates with a maximum current rating of 6 A at 12 VDC using silver contacts and 3 A at 12 VDC with silver-plated copper contacts. These ratings ensure compatibility with a wide range of industrial power sources while maintaining efficient performance.
The switch operates effectively across a broad temperature range from -20°C to +55°C, enabling reliable performance in extreme environmental conditions. This makes the Panel Switches 1412NA2 suitable for both indoor and outdoor industrial applications where temperature fluctuations are common.
Featuring butt action contacts with double break solder lug terminals, the switch provides secure and durable connections. The straight PC and quick-connect terminals ensure easy installation and maintenance, reducing downtime during system adjustments or repairs.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
The APEMPanel Switches 1412NA2 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Electrical Functions | NC3 |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
