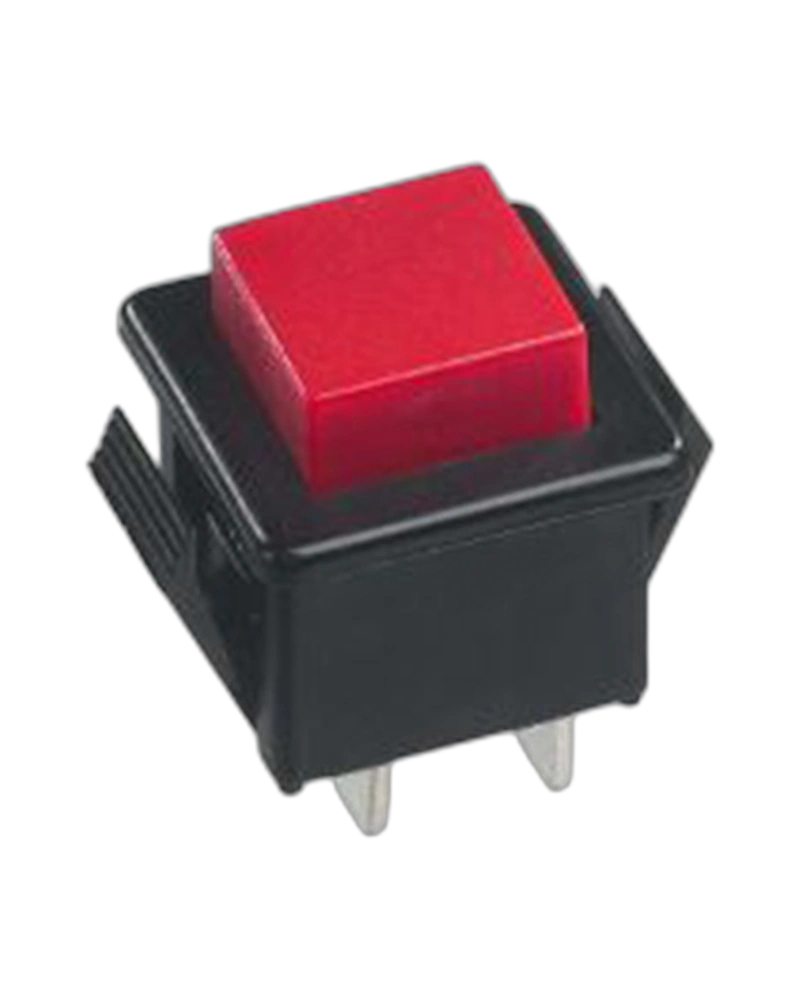

The APEM Panel Switches 1400N is a single pole autoswitch designed for industrial applications. Featuring butt action contacts, double break, and solder lug terminals, it delivers reliable operation with an initial contact resistance of 10 mΩ, electrical life of 10,000 cycles, and insulation resistance of 1,000 MΩ min. at 500 VDC. Ideal for controlling circuits within -20 °C to +55 °C operating temperatures.
The APEM Panel Switches 1400N is a single pole autoswitch engineered for robust industrial use. With a 2 mm polyamide case and ivory plunger color, this panel switch provides precise control through its butt action contacts and double break design. The switch supports normally open, normally closed, or change over functions, ensuring versatility in circuit management while maintaining high reliability under demanding conditions.
The Panel Switches 1400N delivers precise electrical performance with an initial contact resistance of 10 mΩ and electrical life of 10,000 cycles at full load. Its insulation resistance of 1,000 MΩ min. at 500 VDC ensures robust protection against electrical faults, while dielectric strength ratings of 1,500 Vrms 50 Hz min. between terminals and 2,000 Vrms 50 Hz min. to metal panel provide exceptional insulation capability under high-voltage conditions.
Engineered for extreme conditions, the Panel Switches 1400N operates within a temperature range of -20 °C to +55 °C, making it suitable for both cold and hot industrial environments. This wide operational range ensures consistent performance across diverse applications without compromising reliability.
The switch features solder lug terminals with straight PC and quick-connect options, enabling efficient installation and maintenance. Its butt action contacts with double break design minimize arcing and improve safety during operation, while the 1400N force specification ensures precise actuation without excessive mechanical stress.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Electrical Functions | NC3 Contact Materials: Copper (Silver-Plated) Model: N |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
The APEMPanel Switches 1400N is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,500 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between terminals and metal panel |
| Panel thickness | 2 mm (.078) max Butt action contacts, double break Solder lug, straight PC and quick-connect terminals Solder lug, straight PC and quick-connect terminals |
| Electrical Functions | NC3 Contact Materials: Copper (Silver-Plated) Model: N |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 6 A 12 VDC- silver plated copper contacts (C) : 3 A 12 VDC |
