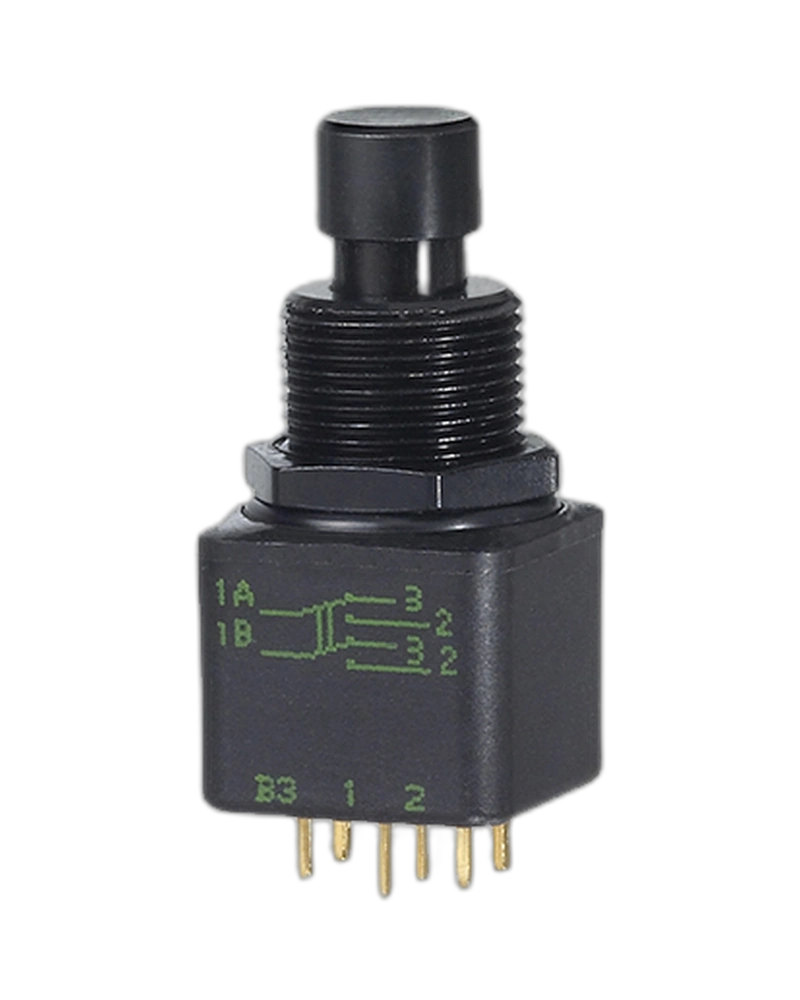

13446-3X778 Versatile 13446-3X778 Panel Switch with double pole configuration for reliable control of lights and motors. Durable and easy to install for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Plungers:815 mm (0.321in),Terminals And Bushing:Solder Lug Terminals, Threaded Bushing,X778:High Performance Fully Sealed Black Switches |
| Minimum load | 10 mA 50 mV, 10 µA 5 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles2,000 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. |
| Total travel | 2.5 mm (.098) |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Initial contact resistance | 10 mΩ max. |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Electrical life | - At 4 A 28 VDC : 10,000 cycles- At low level (50 mV 10 mA) : 150,000 cycles Minimum load : 10 mA 50 mV, 10 µA 5 VDC |
| Panel thickness | 8 mm (.315) max. Fully sealed, black Double shell case for high mechanical strength and electrical insulation CECC approved (CECC 96401-001) Highly reliable contacts Compact size Double shell case for high mechanical str |
| Operating temperature | -40 °C to +85 °C Humidity test : 56 days, 93 % R.H., 40 °C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Humidity test : 56 days, 93 % R.H., 40 °C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Salt spray |
| Max. current/voltage rating with resistive load | 4 A 28 VDC Minimum load : 10 mA 50 mV, 10 µA 5 VDC |
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Number Of Poles | Double Pole,Plungers:815 mm (0.321in),Terminals And Bushing:Solder Lug Terminals, Threaded Bushing,X778:High Performance Fully Sealed Black Switches |
| Minimum load | 10 mA 50 mV, 10 µA 5 VDC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles2,000 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. |
| Total travel | 2.5 mm (.098) |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
