Explore performance details, construction highlights, applications, and technical information in one clear overview.

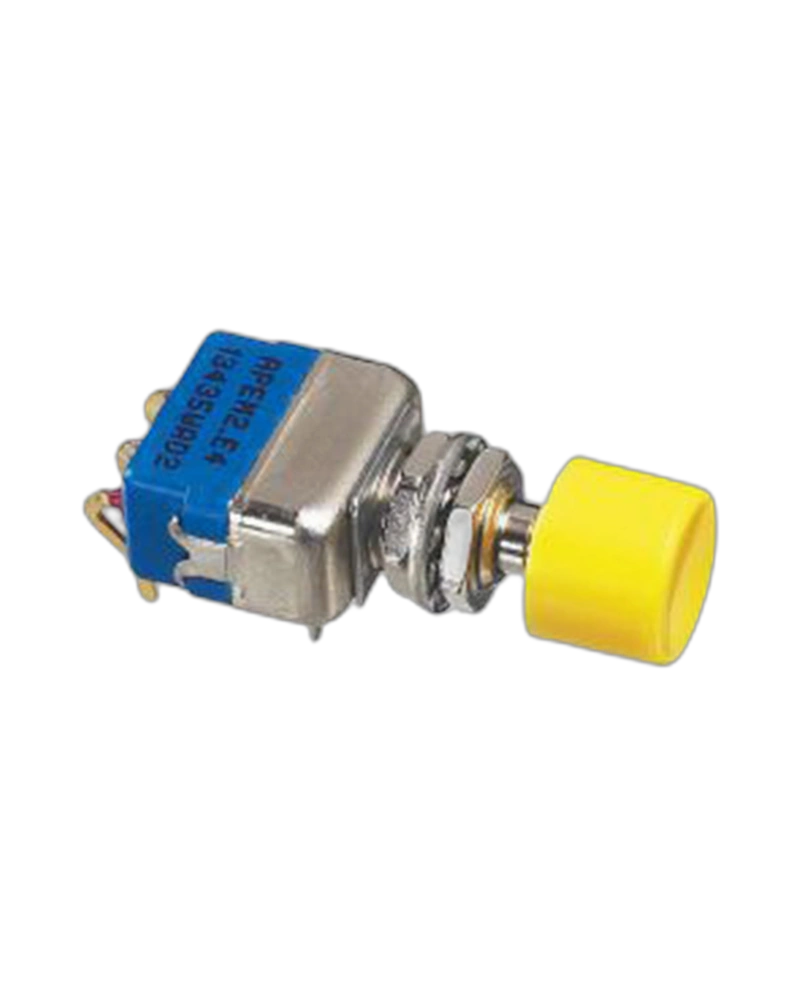

The APEM Panel Switches 13445CDG is a double pole, PC and panel mount pushbutton switch designed for industrial applications. Featuring UL and CE certification, these switches offer robust performance with an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 1,000 Vrms 50 Hz, and a temperature range from -40 °C to +85 °C. Ideal for demanding environments requiring reliable switching.
The APEM Panel Switches 13445CDG is a double pole pushbutton switch engineered for industrial use, combining durability with compliance to stringent safety standards. With a robust construction featuring epoxy-sealed terminals and gold-plated brass contacts, this switch delivers precise operation in extreme conditions. Its wide operating temperature range of -40 °C to +85 °C ensures reliable performance across diverse industrial environments, while UL and CE certifications guarantee adherence to international safety requirements.
The APEM Panel Switches 13445CDG delivers reliable electrical performance with a dielectric strength of 1,000 Vrms 50 Hz min. between terminals and 2,000 Vrms 50 Hz min. between poles and frame. Insulation resistance reaches 1,000 MΩ min. at 500 VDC, ensuring robust electrical isolation. Contact bounce is limited to 2 ms max., while initial contact resistance remains below 10 mΩ.
Engineered for extreme conditions, these switches operate effectively across a temperature range of -40 °C to +85 °C. The epoxy-sealed terminals and robust construction protect against environmental stressors, making them suitable for harsh industrial settings where temperature fluctuations and exposure to elements are common.
Constructed with high-quality PC and panel mount models, the switches feature brass contacts with gold plating for corrosion resistance and reliable electrical connections. The bushing sizes of 6.35 mm (1/4 inch) and 11.9 mm (15/32 inch) ensure secure mounting and compatibility with standard industrial panels.
The APEM Panel Switches 13445CDG meets UL and CE certification standards, providing assurance of safety and reliability in critical applications. This compliance ensures the switches can be used in environments requiring strict adherence to international safety regulations without compromising performance.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13445cdg - pushbutton-switches at |
| Finish | Black Finish,Plungers:Standard 6.35mm(0.25in) bushing |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
The APEMPanel Switches 13445CDG is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13445cdg - pushbutton-switches at |
| Finish | Black Finish,Plungers:Standard 6.35mm(0.25in) bushing |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
