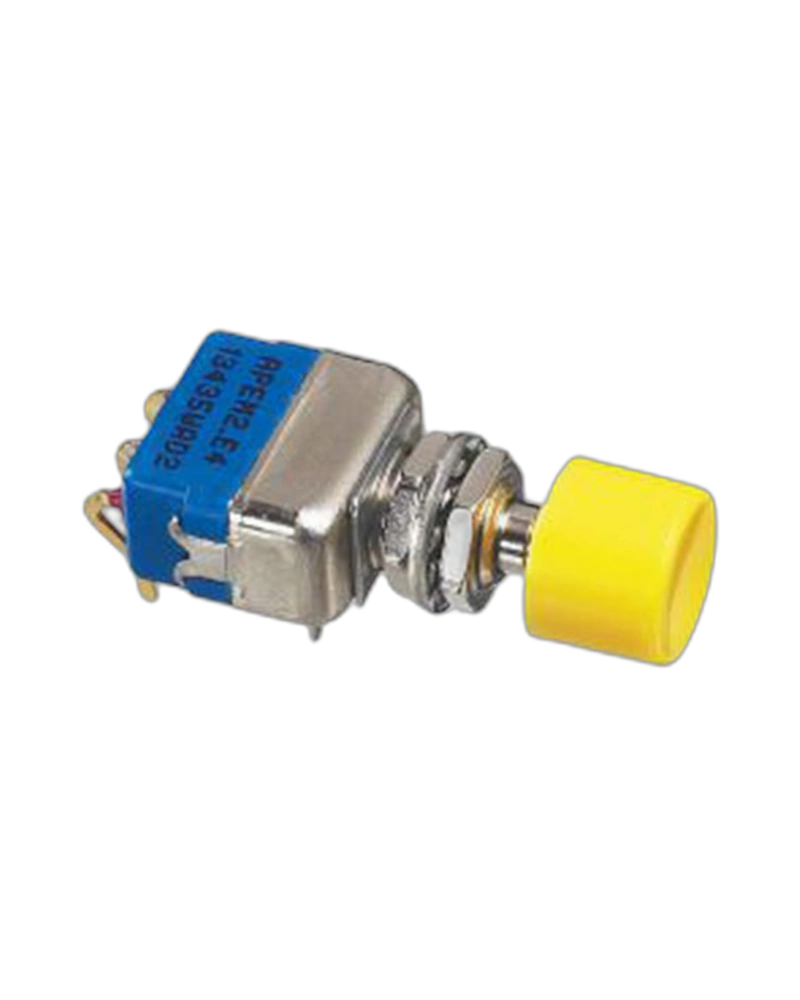

The APEM Panel Switches 13445AD2G is a double pole, PC and panel mount pushbutton switch designed for industrial applications. Featuring UL and CE certification, this switch offers robust performance with an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 1,000 Vrms 50 Hz, and a contact bounce of 2 ms max. It operates within a temperature range of -40 °C to +85 °C, making it suitable for demanding environments.
The APEM Panel Switches 13445AD2G is a high-reliability double pole pushbutton switch engineered for industrial control systems. This switch combines robust electrical performance with durable construction, featuring a PC panel mount design, silver contact materials (gold-plated), and epoxy-sealed terminals to ensure long-term reliability in harsh conditions. With a wide operating temperature range from -40 °C to +85 °C and UL/CE certification, it delivers precise switching action and minimal contact bounce for critical applications where reliability is paramount.
The APEM Panel Switches 13445AD2G delivers exceptional electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 1,000 Vrms 50 Hz between terminals. This ensures reliable operation in high-voltage environments while maintaining safety standards. The switch also features an initial contact resistance of 10 mΩ max., minimizing power loss during switching operations.
Engineered for extreme conditions, this switch operates effectively across a wide temperature range from -40 °C to +85 °C. The epoxy-sealed terminals and robust construction protect against environmental factors, ensuring consistent performance in both industrial and outdoor settings without compromising reliability.
The switch features a 2 mm panel thickness (max.) with a standard 6.35 mm (0.25 in) bushing for secure mounting. It includes solder lug or right-angle terminals, allowing for flexible installation options while maintaining structural integrity and electrical safety.
UL and CE certified, the APEM Panel Switches 13445AD2G meets international safety and quality standards. This certification ensures the switch is suitable for use in applications requiring strict regulatory compliance, such as industrial automation and control systems.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13445ad2g - pushbutton-switches at |
| Finish | Black Finish,Plungers:Standard 6.35mm(0.25in) bushing |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
The APEMPanel Switches 13445AD2G is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13445ad2g - pushbutton-switches at |
| Finish | Black Finish,Plungers:Standard 6.35mm(0.25in) bushing |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
