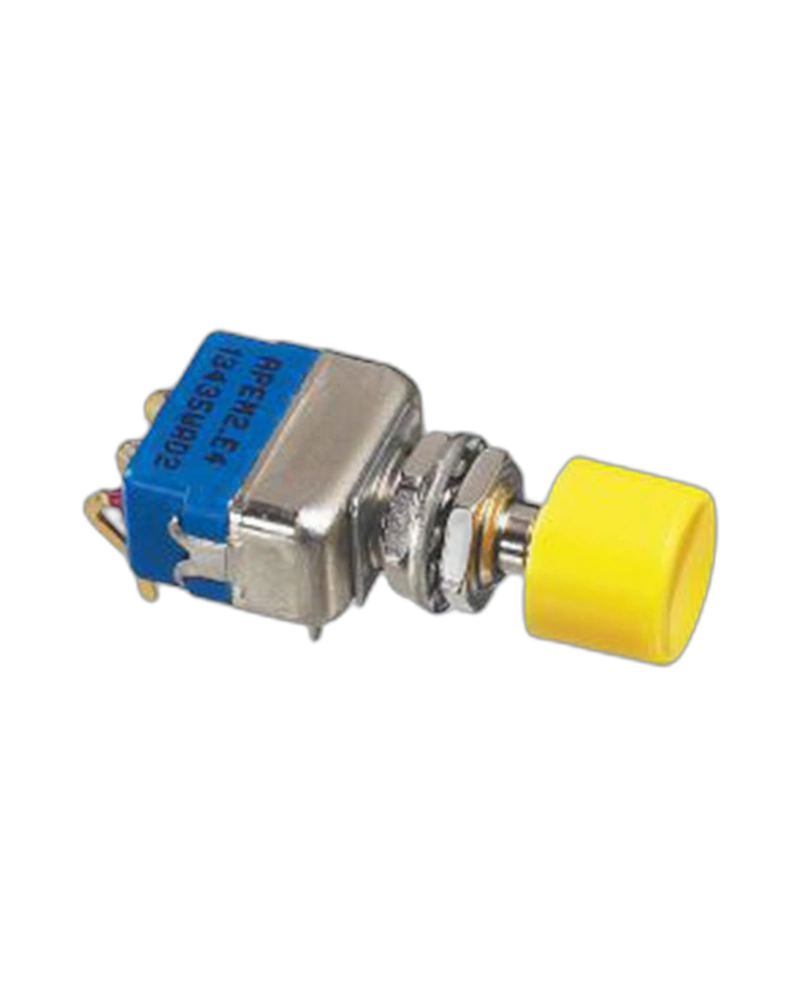

The APEM Panel Switches 13435WAD2 is a single pole, nickel-plated brass switch designed for industrial applications. Featuring a 2 mm panel thickness, 1.25 Nm torque specification, and UL/CECC approval, this switch ensures reliable electrical control in demanding environments from -40°C to +85°C.
The APEM 13435WAD2 Panel Switch is a single pole, nickel-plated brass switch engineered for robust industrial use. With a compact 2 mm panel thickness and precise 1.25 Nm torque tolerance, it delivers reliable electrical switching performance in extreme temperature ranges (-40°C to +85°C). This switch features a 4 mm plunger length for 11.9 mm bushing compatibility, ensuring seamless integration into panel-mounted systems while maintaining UL and CECC certification for safety and compliance.
The 13435WAD2 features a single pole configuration with an initial contact resistance of 10 mΩ max. It maintains a contact bounce time of 2 ms max. and provides dielectric strength of 1,000 Vrms 50 Hz min. between terminals, with 2,000 Vrms 50 Hz min. between poles and between terminals and frame. Insulation resistance reaches 1,000 MΩ min. at 500 VDC.
Engineered for extreme conditions, the 13435WAD2 operates reliably across a wide temperature range from -40°C to +85°C. Its epoxy-sealed terminals ensure long-term durability and resistance to environmental factors, while the UL and CECC certifications guarantee compliance with international safety standards.
With a 2 mm panel thickness and 2 mm total travel, the 13435WAD2 is designed for compact panel mounting. The switch uses bushings of 6.35 mm (1/4 inch) and 11.9 mm (15/32 inch) with solder lug or right-angle terminals, ensuring precise mechanical alignment and secure installation.
The APEM 13435WAD2 meets stringent international safety standards with UL and CECC approvals. This certification ensures the switch is suitable for use in regulated industrial environments without requiring additional safety certifications.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Finish | Brass (Nickel-Plated),Plungers:4 mm (0.157in) long, for 11.9mm (15/32) bushing (X768) |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13435wad2 - pushbutton-switches at |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
