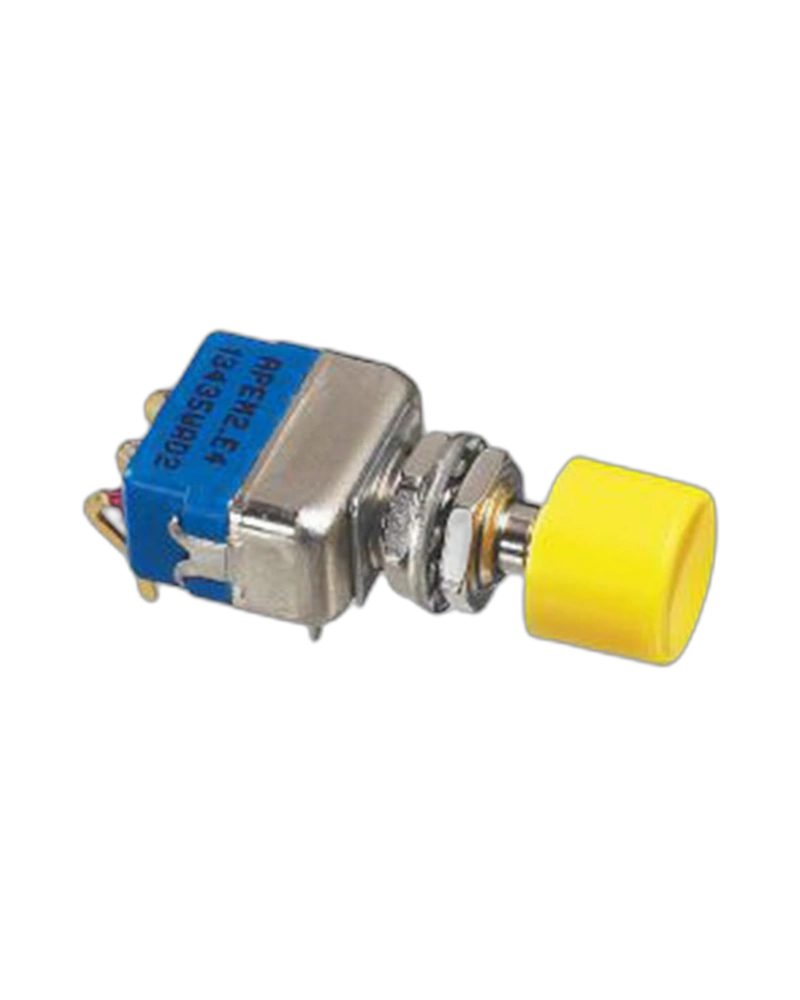

The 13435WA Panel Switch is a reliable single pole push-button switch with ON functionality, ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Finish | Black Finish,Plungers:4 mm (0.157in) long, for 11.9mm (15/32) bushing (X768),Caps:8314 |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved Discover 13435wa - pushbutton-switches at A |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON |
