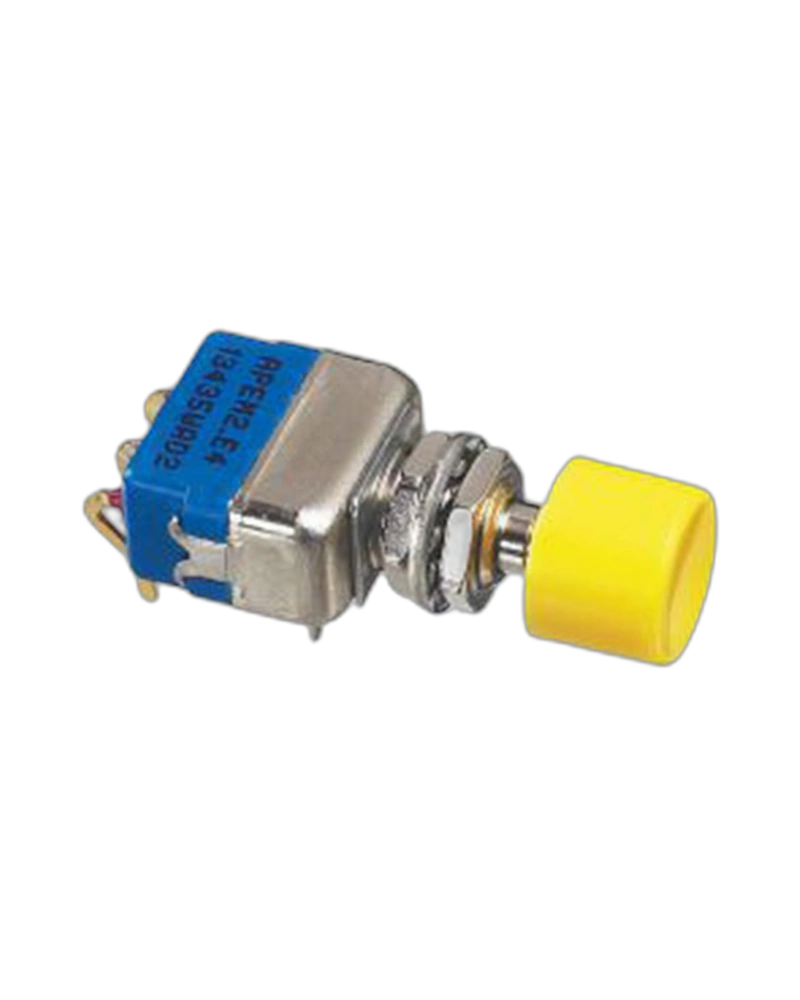

The APEM Panel Switches 13435CDGKX935 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max.; Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut Standard.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Torque | 1.25 Nm (.922 Ft.lb) max. applied to nut Standard |
| panel thickness | 2 mm (.078 ) max. |
| Total travel | 2 mm (.078) PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved UL and CECC approved The 13435CDGKX935 Panel Switch is a versati |
| Finish | Black Finish,Plungers:Standard 6.35mm(0.25in) bushing |
| Operating temperature | -40 °C to +85 °C |
| Electrical Functions | ON |
