Panel Switches 13000X778 - momentary

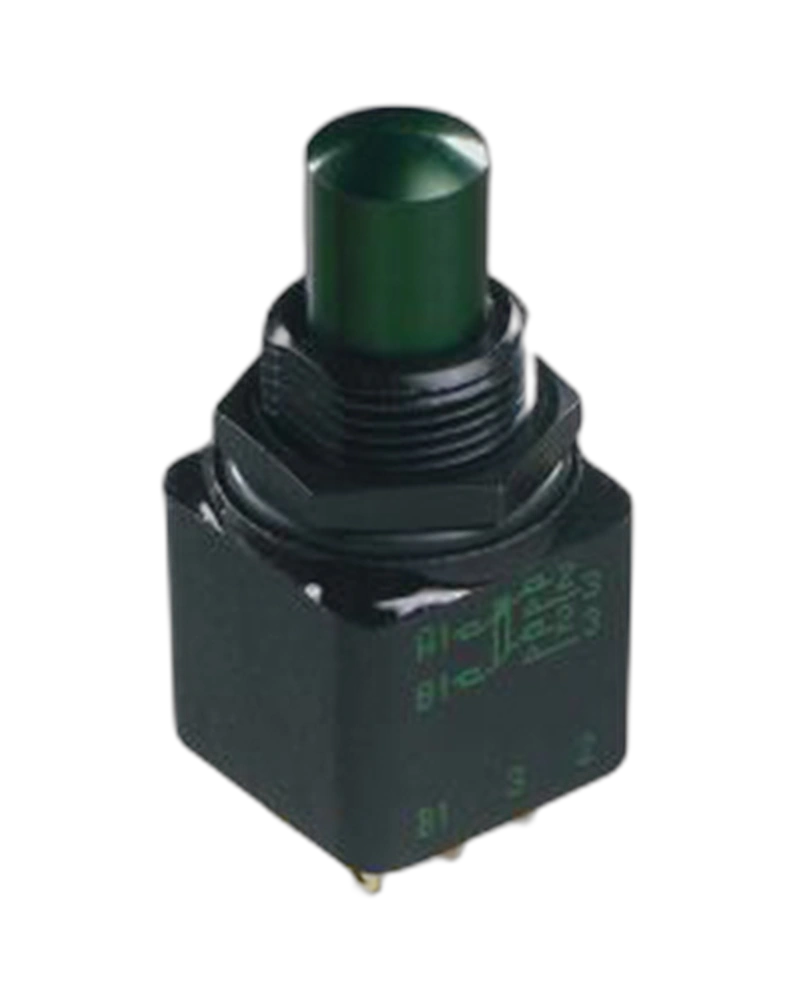

13000X778 - momentary 13445-4X778 The 13445-4X778 Panel Switch features a durable design, double pole configuration for enhanced performance, and ON MOM function for easy operation in various applications. Select Quantity
Key Features
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles2,000 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max.
- Electrical life: - At 4 A 28 VDC : 10,000 cycles- At low level (50 mV 10 mA) : 150,000 cycles Minimum load : 10 mA 50 mV, 10 µA 5 VDC
- Operating temperature: -40 °C to +85 °C Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Salt spray te
- Total travel: 2 mm (.078)
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 5 mm (.196) max.
- Number Of Poles: Double Pole,Plungers:4mm (0.157in),Terminals And Bushing:Solder Lug Terminals, Threaded Bushing,X778:High Performance Fully Sealed Black Switches
- Initial contact resistance: 10 mΩ max.
- Max. current/voltage rating with resistive load: 4 A 28 VDC Minimum load : 10 mA 50 mV, 10 µA 5 VDC
- Electrical Functions: ON MOM
- Panel sealed to IP67, these switches are frontal sealed by two O-rings and have full rear end sealing.
- Approval CECC 96401-001 : This range of professional pushbutton switches is suitable for use in military and other high specification environments.
- Highly reliable contacts suitable for low level applications (10mA 50mV - 10μA 5VDC min.) or power applications (2A 250VAC - 4A 125VAC - 4A 30VDC max.)
- Home Panel switches Pushbutton Switches 13000X778 momentary 13445-4X778 13000X778 - momentary
- Double shell case for high mechanical strength and high electrical insulation.
- Compact size : The small rear end of the switch allows space saving behind the panel.
- Matt black finish on body, bushing, lever and hardware.
- Solder lug or pc terminals
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Minimum load | 10 mA 50 mV, 10 µA 5 VDC |
| Sealing | IP67 |
