Panel Switches 13000X778 - alternate

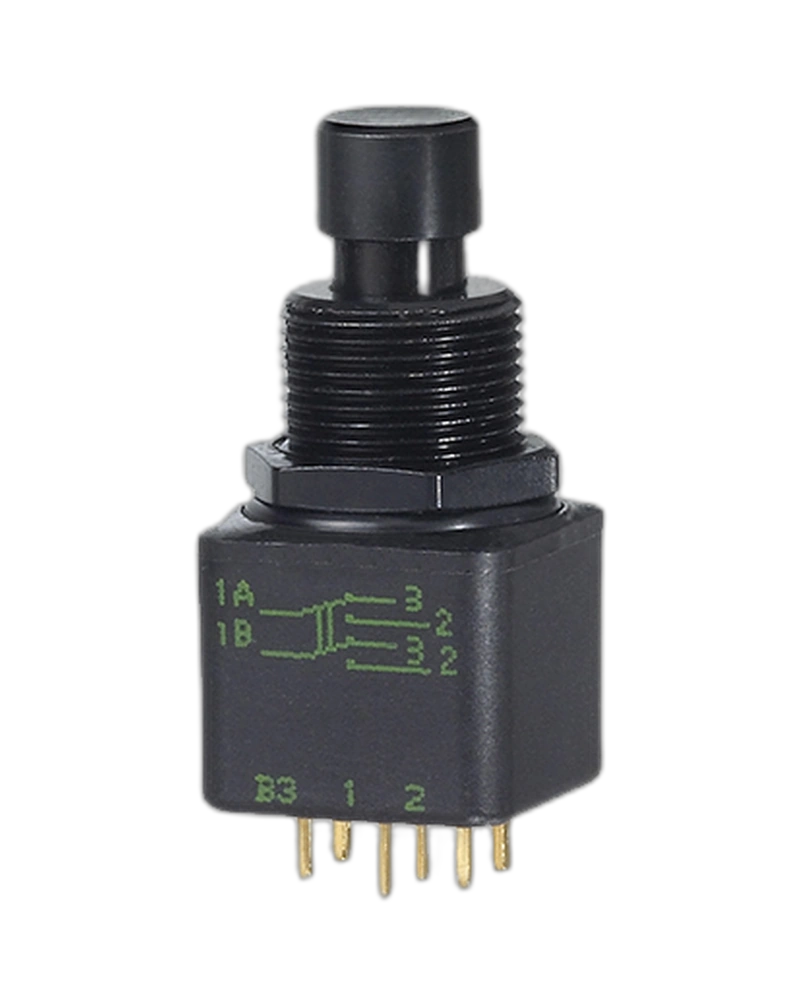

The APEM Panel Switches 13000X778 - alternate is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Double Pole,Plungers:815 mm (0.321in),Terminals And Bushing:Solder Lug Terminals, Threaded Bushing,X778:High Performance Fully Sealed Black Switches; Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between poles 2,000 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max..

Product Overview

13000X778 - alternate 13246-3X778 Select Quantity

Key Features

• Number Of Poles: Double Pole,Plungers:815 mm (0.321in),Terminals And Bushing:Solder Lug Terminals, Threaded Bushing,X778:High Performance Fully Sealed Black Switches
• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength: 1,000 Vrms 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between poles 2,000 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max.
• Electrical life: - At 4 A 28 VDC : 10,000 cycles- At low level (50 mV 10 mA) : 150,000 cycles Minimum load : 10 mA 50 mV, 10 µA 5 VDC
• Total travel: 2.5 mm (.098)
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 8 mm (.315) max. Fully sealed, black Double shell case for high mechanical strength and electrical insulation CECC approved (CECC 96401-001) Highly reliable contacts Compact size Double shell case for high mechanical str
• Initial contact resistance: 10 mΩ max.
• Operating temperature: -40 °C to +85 °C Humidity test : 56 days, 93 % R.H., 40 °C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Humidity test : 56 days, 93 % R.H., 40 °C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Salt spray
• Max. current/voltage rating with resistive load: 4 A 28 VDC Minimum load : 10 mA 50 mV, 10 µA 5 VDC
• Fully sealed, black Double shell case for high mechanical strength and electrical insulation CECC approved (CECC 96401-001) Highly reliable contacts Compact size
• Double shell case for high mechanical strength and electrical insulation CECC approved (CECC 96401-001) Highly reliable contacts Compact size
• and electrical insulation CECC approved (CECC 96401-001) Highly reliable contacts Compact size
• CECC approved (CECC 96401-001) Highly reliable contacts Compact size
• Electrical Functions: ON ON
• Case: diallylphthalate (DAP) with PBT external shell (epoxy sealed)
• Actuator: brass, black chrome plated Bushing : brass, black chrome plated Contacts : silver inlay - gold plated over nickel barrier Bushing : brass, black chrome plated Contacts : silver inlay - gold plated over nickel barrier Con
• Highly reliable contacts Compact size
• Compact size
• Panel sealed to IP 67, these switches are frontal sealed by two O-rings and have full rear end sealing.
• Double shell case for high mechanical strength and high electrical insulation.
• Compact size : The small rear end of the switch allows space saving behind the panel.
• Matt black finish on body, bushing, plunger and hardware.
• Solder lug or PC terminals
