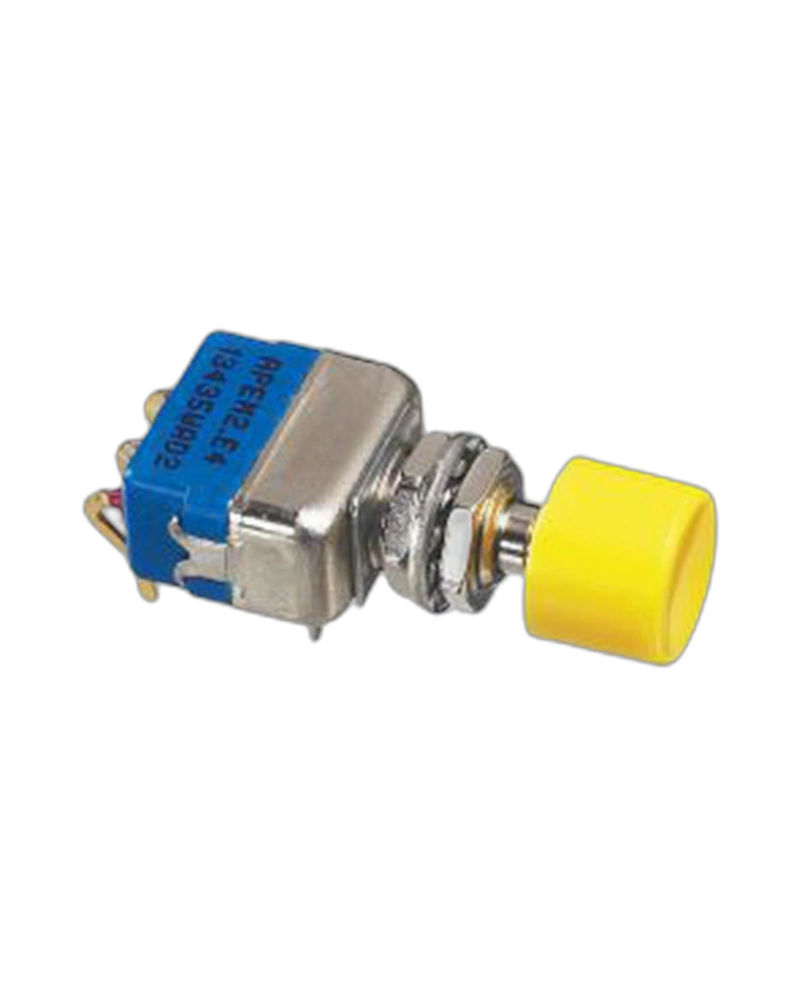

13000 13435AG The 13435AG Panel Switch features a single pole design for easy control of lighting and appliances, offering durability and a sleek appearance for reliable performance. Select Quantity
Key Features
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max.
- Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut Standard
- panel thickness: 2 mm (.078 ) max.
- Total travel: 2 mm (.078) Standard
- Finish: Black Finish,Plungers:Standard 6.35mm(0.25in) bushing
- Initial contact resistance: 10 mΩ max.
- Operating temperature: -40 °C to +85 °C
- PC and panel mount models Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved
- Bushing Ø 6.35 (1/4) and 11.9 (15/32) UL and CECC approved
- Number Of Poles: Double Pole,Contact Materials:Brass (Gold-Plated)
- Sealing: Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special
- Options: No Special Requirement
- Electrical Functions: ON
- Terminals: Right Angle Horizontal,Terminals And Bushing:Straight PC,Special
- UL and CECC approved
- Panel sealed to IP67, these switches are frontal sealed by two O-rings and have full rear end sealing.
- Bushing Ø 6,35 (1/4) and 11,9 (15/32)
- Approval CECC 96401-001 : This range of professional pushbutton switches is suitable for use in military and other high specification environments.
- Highly reliable contacts suitable for low level applications (10mA 50mV - 10μA 5VDC min.) or power applications (2A 250VAC - 4A 125VAC - 4A 30VDC max.)
- Datasheet 3D CAD Files Name Last Updated File Type File Size pusbutton_switches_serie_13000 06/05/2026 .PDF 2.22MB
- For panel or PCB
- Designed to European MIL specs.
- Double shell case for high mechanical strength and high electrical insulation.
- Compact size : The small rear end of the switch allows space saving behind the panel.
- Matt black finish on body, bushing, lever and hardware.
- Solder lug or pc terminals
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| A | 4 A 30 VDC 50,000 |
| AD2 | 4 A 30 VDC (gold plating : 100 mA 30 VDC max.) 20,000 |
| CD | 100 mA 30 VDC 50,000 |
| Low level or mechanical life | 150,000 |
| Actuator | brass, nickel plated 1.70(.066) |
| Height | 4mm |
| Case | diallylphthalate (DAP) |
| Mounting | Right Angle Horizontal Mounting |
