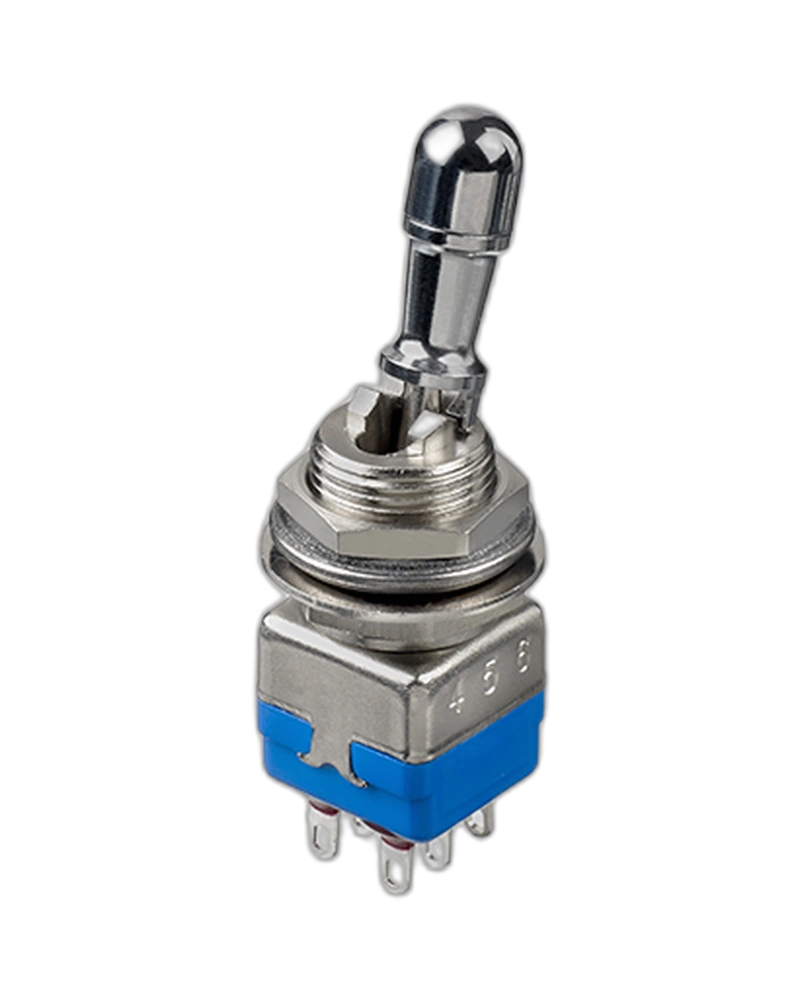

The APEM Panel Switches 12247AD2KX545 is a robust double-pole autoswitch designed for high-specification environments. Featuring a bright chrome finish, toggle action for smooth mechanical operation, and CECC approval, this switch delivers reliable performance with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and an initial contact resistance of 10 mΩ max. Ideal for demanding industrial applications requiring precise electrical control.
The APEM Panel Switches 12247AD2KX545 is a high-reliability double-pole autoswitch engineered for stringent industrial environments. This switch combines robust construction with precise electrical performance, featuring a toggle action for smooth mechanical operation on 2-position models. With a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and a maximum initial contact resistance of 10 mΩ, it ensures reliable switching in demanding applications. The switch operates within a wide temperature range of -40°C to +85°C and meets CECC and MIL standards for safety and durability.
The APEM Panel Switches 12247AD2KX545 delivers precise electrical performance with a dielectric strength of 1.000 Vrms 50 Hz min. between terminals and 2.000 Vrms 50 Hz min. between poles and between terminals and frame. It maintains an initial contact resistance of 10 mΩ max and provides an insulation resistance of 1.000 MΩ min. at 500VDC, ensuring reliable switching under demanding electrical conditions.
Engineered for extreme conditions, this switch operates within a temperature range of -40°C to +85°C. Its robust construction and CECC approval ensure compliance with MIL standards, making it suitable for harsh industrial environments where temperature fluctuations and electrical stress are common.
The toggle action on 2-position models provides smooth mechanical operation with a contact bounce of 2 ms max. This feature ensures precise switching without unintended interruptions, critical for applications requiring consistent and reliable control.
Available with front panel sealing options including one O-ring and sealing washer, this switch ensures protection against environmental contaminants. The mounting configuration includes lever bushing housing nuts and washers with satin chrome finish, providing secure installation and long-term reliability.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max. |
| Operating temperature | -40°C to +85°C |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard |
| panel thickness | 4,5 mm (.177) max. CECC approved - conforms to MIL |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer,Terminals And Bushing:Straight PC,Special |
| Electrical Functions | MOM OFF MOM |
