Panel Switches 12247A

12000 12247AG-038-8VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 9-44 Sealing : Epoxy Sealed Terminals 12000 12247AG-038-8VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 9-44 Sealing : Epoxy Sealed Terminals 12000 12155AGK-038-2VX408 Finish : Black Finish On Bushing Actuator and Hardware Levers : 2 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12155AGK-038-2VX408 Levers : 2 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12000 12248AGK-15VX545CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 8-441R Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12248AGK-15VX545CECC Levers : Functions 8-441R 12000 12265DGK-038-12VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7 & 8 Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12265DGK-038-12VX822CECC Levers : Functions 7 & 8 12000 12159AG-038-7VCECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 8-441R Sealing : Epoxy Sealed Terminals 12159AG-038-7VCECC 12000 12169AD2G-11VX780 Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 8, 9, 44, 441R Sealing : Epoxy Sealed Terminals 12169AD2G-11VX780 Levers : Functions 8, 9, 44, 441R 12000 12249DGK-038-3VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : 3 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12249DGK-038-3VX822CECC Levers : 3 Locked Positions 12000 12265AD2GK-2VX408CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : 2 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12265AD2GK-2VX408CECC 12000 12149AD2G-038-5VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Epoxy Sealed Terminals 12149AD2G-038-5VX822CECC Levers : Functions 7, 442R 12000 12165AG-038-2VX545 Finish : Black Finish On Bushing Actuator and Hardware Levers : 2 Locked Positions Sealing : Epoxy Sealed Terminals 12165AG-038-2VX545 12000 12268DG-17VX545CECC Finish : Black Fi

Key Features

• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max.
• Operating temperature: -40°C to +85°C
• Torque: 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard

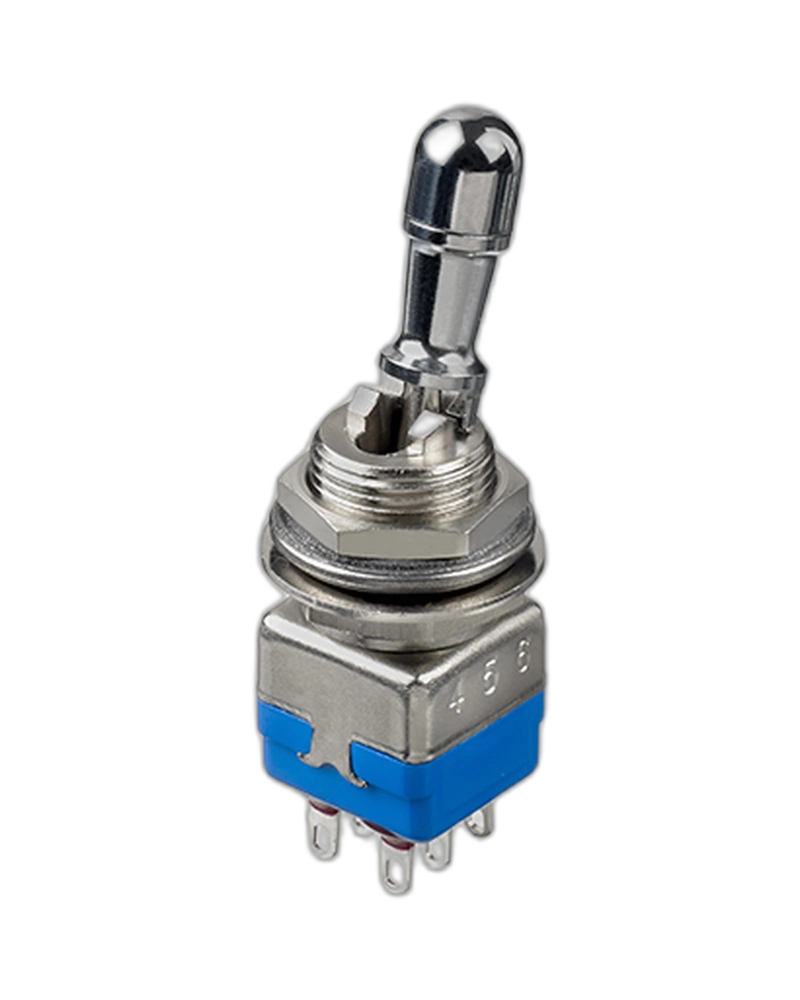

• panel thickness: 4,5 mm (.177) max. The 12247A-1VCECC Panel Switch features straight PC terminals and terminals and bushings for easy installation. It has a double pole configuration, allowing for enhanced electrical functions. The switc
• Finish: Bright Chrome Finish On Actuator,Levers:Functions 8, 9, 44, 441R
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Robust switches for high specification environments Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• Robust switches for high specification environments Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Number Of Poles: Double Pole,Contact Materials:Silver
• Sealing: Front Panel Sealing with One O-Ring and Sealing Washer,Terminals And Bushing:Straight PC,Special
• Options: Switches for Peak Currents - Double Pole
• Electrical Functions: MOM OFF MOM
• CECC approved - conforms to MIL
• Several front panel sealing options Several locking lever options
• Several locking lever options
• mechanical operation Several front panel sealing options Several locking lever options
