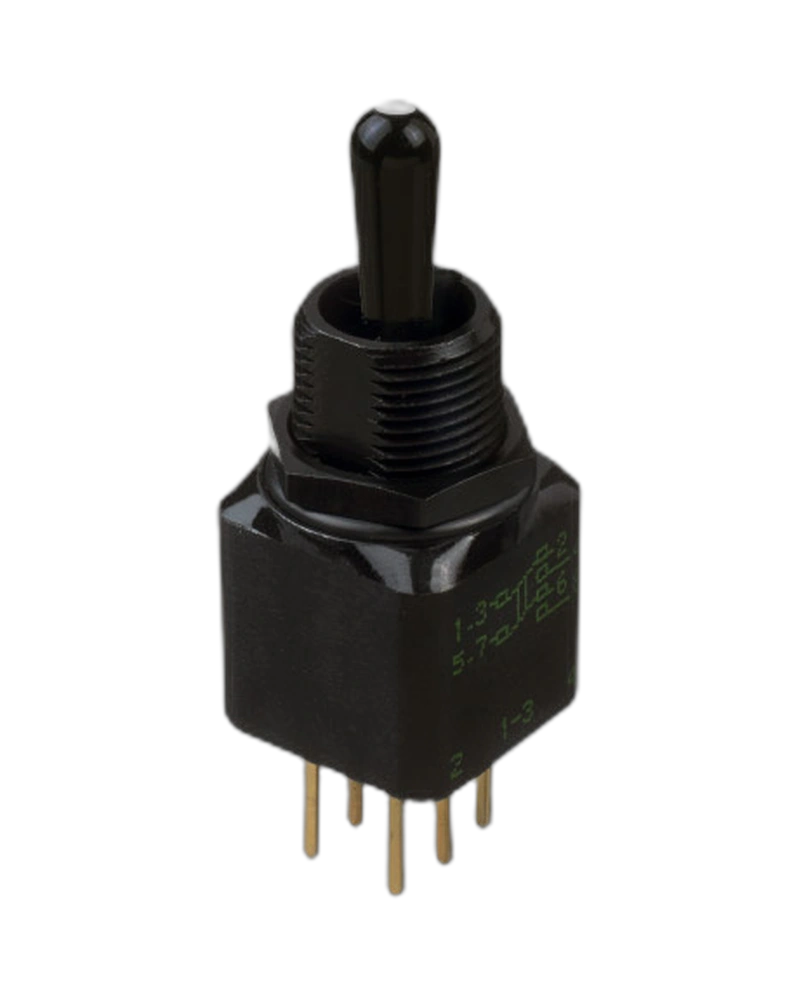

The APEM Panel Switches 12246-038-12X778 is a double pole fluorescent tip switch designed for industrial applications. This compact switch features a matt black finish, double shell case for enhanced mechanical strength and electrical insulation, and operates within a temperature range of -40°C. It provides reliable electrical performance with 20,000 cycles at 4A 28VDC and is sealed to IP67 standards for robust protection.
The APEM Panel Switches 12246-038-12X778 is a high-reliability double pole fluorescent tip switch engineered for demanding industrial environments. With a compact design that minimizes panel space while maintaining robust mechanical strength through its double shell case construction, this switch delivers exceptional electrical performance and durability. The switch features a matt black finish across all components, including the body, bushing, lever, and hardware, ensuring a cohesive and professional appearance. Its sealed construction with two O-rings provides IP67 protection against dust and water ingress, making it suitable for harsh conditions. The switch also includes strain relief to prevent damage from accidental impacts, enhancing its longevity in high-vibration settings.
The APEM Panel Switches 12246-038-12X778 delivers reliable electrical performance with a rated electrical life of 20,000 cycles at 4A 28VDC. For specific functions, the electrical life is reduced to 10,000 cycles for functions 5, 4-1R, and 4-2R. The switch also maintains high reliability with 150,000 cycles at low levels (50mV 10mA), suitable for applications requiring extended operational life in low-power environments.
Engineered for extreme conditions, this switch features IP67 sealing achieved through two O-rings that protect against dust and water ingress. The double shell case construction ensures robust protection against mechanical impacts and environmental stressors, making it ideal for use in industrial settings where exposure to harsh conditions is common.
The switch incorporates a compact rear end design to optimize space usage behind panels. Its double shell case provides high mechanical strength and electrical insulation, while the pinned lever mechanism ensures reliable operation and strain relief to prevent damage from accidental impacts. The switch operates within a temperature range of -40°C, ensuring functionality in extreme cold environments.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
The APEMPanel Switches 12246-038-12X778 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
