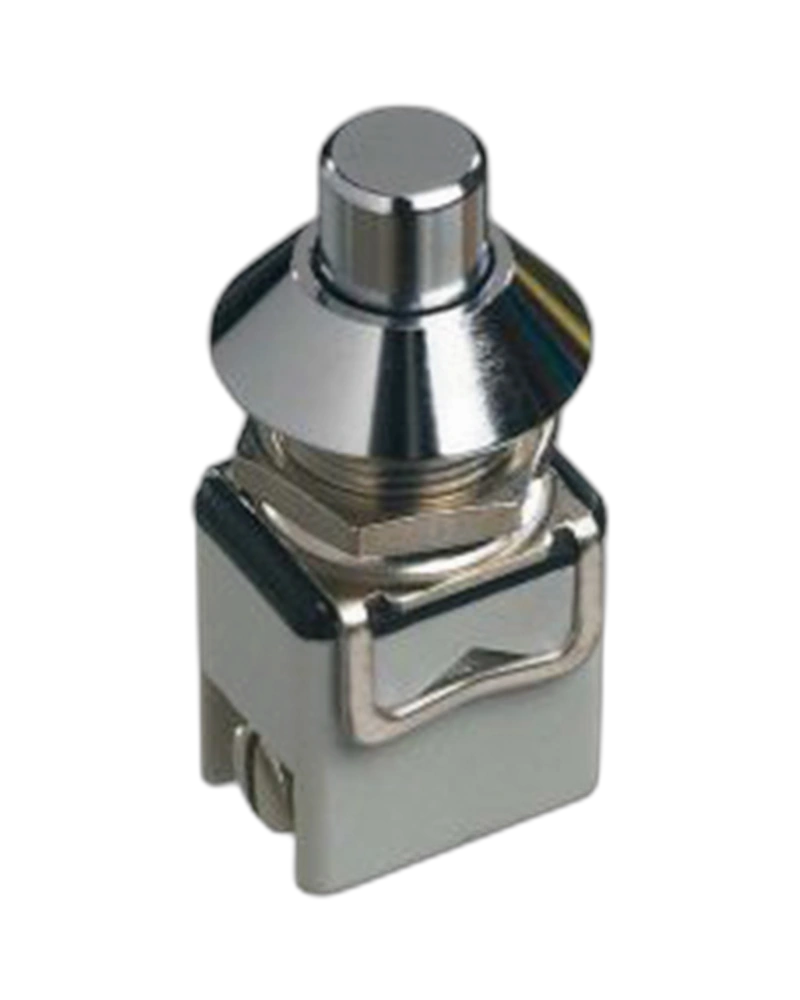

Panel Switches 1223MRC

1223MRC Terminals : Screw Contact Materials : Copper (Silver-Plated) Electrical Functions : Normally Open (NO) 1200MR 1223MRC Terminals : Screw Contact Materials : Copper (Silver-Plated) Electrical Functions : Normally Open (NO) 1200MR 1223MRA Terminals : Screw Contact Materials : Silver Electrical Functions : Normally Open (NO) 1223MRA Contact Materials : Silver 1200MR 1223MA Terminals : Screw Contact Materials : Silver Electrical Functions : Normally Open (NO) 1223MA 1200MR 1222MRA Terminals : Screw Contact Materials : Silver Electrical Functions : Normally Closed (NC) 1222MRA Electrical Functions : Normally Closed (NC) 1200MR 1222MA Terminals : Screw Contact Materials : Silver Electrical Functions : Normally Closed (NC) 1222MA 1200MR 1213MRC Terminals : Solder Lug Quick Connect Contact Materials : Copper (Silver-Plated) Electrical Functions : Normally Open (NO) 1213MRC Terminals : Solder Lug Quick Connect 1200MR 1213MRA Terminals : Solder Lug Quick Connect Contact Materials : Silver Electrical Functions : Normally Open (NO) 1213MRA 1200MR 1213MC Terminals : Solder Lug Quick Connect Contact Materials : Copper (Silver-Plated) Electrical Functions : Normally Open (NO) 1213MC 1200MR 1213MA Terminals : Solder Lug Quick Connect Contact Materials : Silver Electrical Functions : Normally Open (NO) 1213MA 1200MR 1212MRC Terminals : Solder Lug Quick Connect Contact Materials : Copper (Silver-Plated) Electrical Functions : Normally Closed (NC) 1212MRC 1200MR 1212MRA Terminals : Solder Lug Quick Connect Contact Materials : Silver Electrical Functions : Normally Closed (NC) 1212MRA 1200MR 1212MA Terminals : Solder Lug Quick Connect Contact Materials : Silver Electrical Functions : Normally Closed (NC) 1212MA 1200MR 1203MRA Terminals : Screw Clamp Contact Materials : Silver Electrical Functions : Normally Open (NO) 1203MRA Terminals : Screw Clamp 1200MR 1203MA Terminals : Screw Clamp Contact Materials : Silver Electrical Functions : Normally Open (NO) 1203MA 1200MR 1202MA Terminals : Screw Clamp Contact Materials : Silver Electrical Functions : Normally Closed (NC) 1202MA

Key Features

• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength: 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame
• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 4.5 mm (.177) max.
• Total travel: NO : 4.5 mm (.177) +/- 0.3 (.011)NC : 3.5 mm (.137) +/- 0.3 (.011) Butt action contacts Double break UL and CSA approved Double break UL and CSA approved UL and CSA approved Aug 16, 2024 · Discover 1223mrc - pushbutton-s
• Initial contact resistance: 10 mΩ max.
• Electrical life: 10,000 cycles at full load
• Operating temperature: -20 °C to +55 °C
• Max. current/voltage rating with resistive load: - silver contacts (A) : 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 VDC- silver plated copper contacts (C) : 2 A 250 VAC - 3 A 125 VAC - 2 A 14 VDC - 3 A 12 VDC
• Terminals: Screw
• Electrical Functions: Normally Open (NO)
• Butt action contacts Double break UL and CSA approved
• Double break UL and CSA approved
• UL and CSA approved
