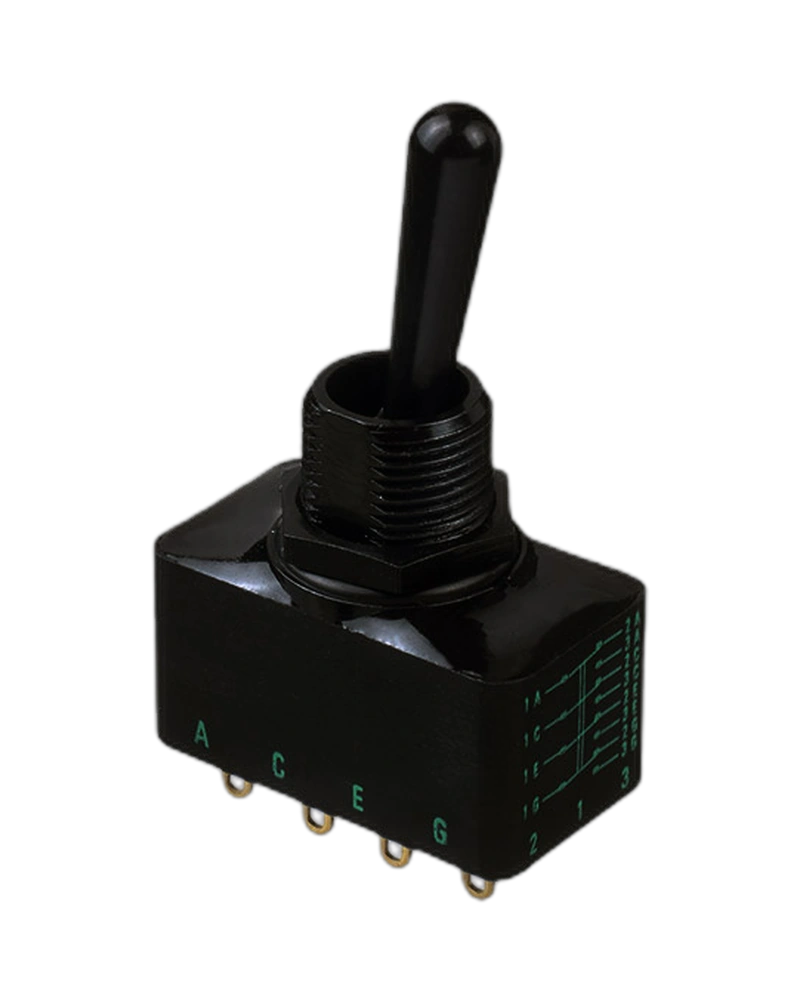

The APEM Panel Switches 12167X778 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles Contact bounce : 2 ms max. Minimum load : 10mA 50mV, 10μA 5VDC; Operating temperature: -40°C to +85°C Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Front panel sealing by two O-rings Flatted bush for precise orientation Panel seal withstands 1 bar pressure a; Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles Contact bounce : 2 ms max. Minimum load : 10mA 50mV, 10μA 5VDC |
| Operating temperature | -40°C to +85°C Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Front panel sealing by two O-rings Flatted bush for precise orientation Panel seal withstands 1 bar pressure a |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Electrical life | - At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (moment |
| Max. current/voltage rating with resistive load | 4A 28VDC Minimum load : 10mA 50mV, 10μA 5VDC |
| Electrical Functions | MOM OFF MOM |
