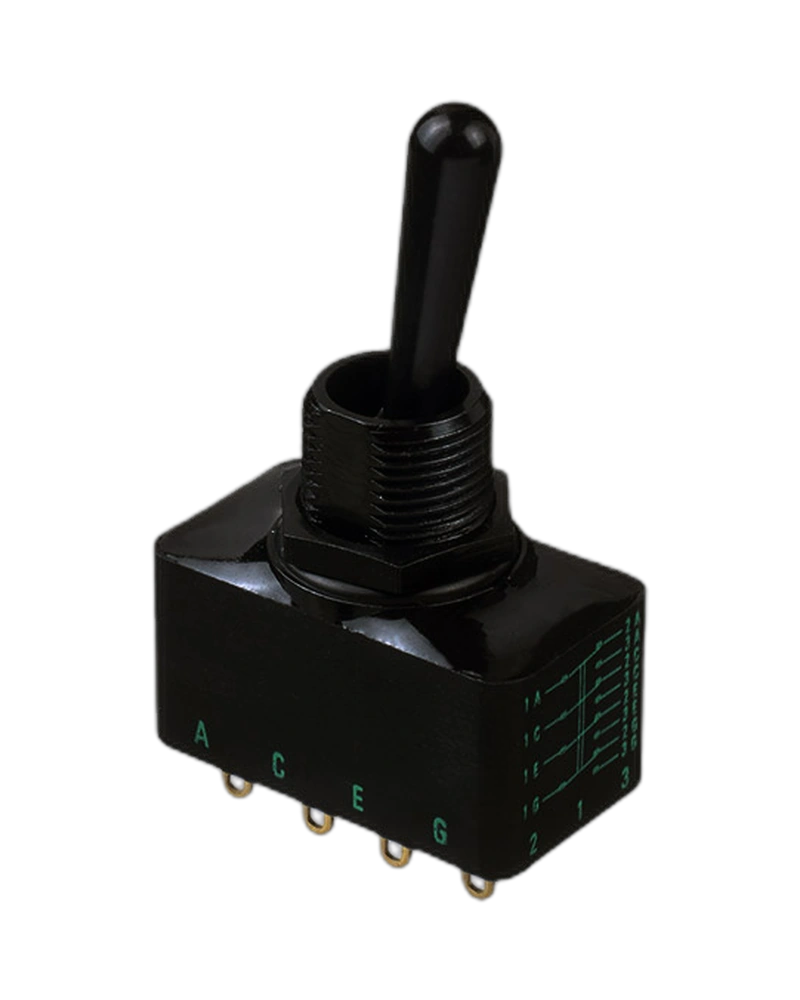

The APEM Panel Switches 12164X778 is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: ON ON MOM ON ON ON ON MOM MOM Levers: Standard Terminals And Bushing: Solder Lug Terminals X778: High Performance Fully Sealed Black Switches; Electrical life: - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom; Number Of Poles: Four Poles.
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles |
| Operating temperature | -40°C to +85°C |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Minimum load | 10mA 50mV, 10μA 5VDC |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Feature | Specification |
|---|---|
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles |
| Operating temperature | -40°C to +85°C |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Minimum load | 10mA 50mV, 10μA 5VDC |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
