Panel Switches 12159AD2K

The APEM Panel Switches 12159AD2K is a Switches and Pushbutton with documented product-specific characteristics including Options: No special requirement; Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max. Contact bounce: 2 ms max.; Operating temperature: -40°C to +85°C.

Key Features

• Options: No special requirement
• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max. Contact bounce: 2 ms max.
• Operating temperature: -40°C to +85°C
• Torque: 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard

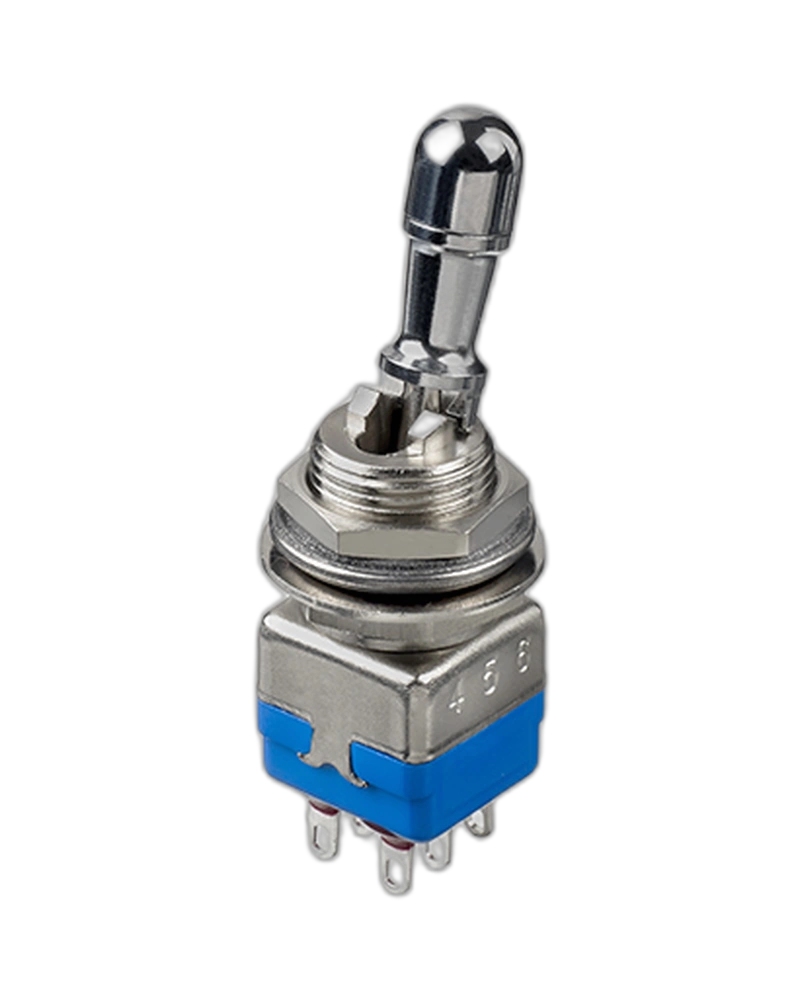

• panel thickness: 4,5 mm (.177) max. The 12159AD2K-7VCECC Panel Switch is equipped with solder lug terminals for easy and secure connection. It features three poles, allowing for versatile electrical applications. With its ON OFF ON elect
• Finish: Bright chromefinish ON actuator Fluorescent Tip: None Levers: 3 locked positions
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Robust switches for high specification environments Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• Robust switches for high specification environments Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_12000_series 26/11/2025
• The 12159AD2K-5VX545CECC Panel Switch features solder lug terminals for secure, reliable connections.
• Number Of Poles: Three Poles
• Electrical Functions: ON OFF ON
• Sealing: Front Panel Sealing with One O-Ring and Sealing Washer,Special
• CECC approved - conforms to MIL
• Several front panel sealing options Several locking lever options
• Several locking lever options
• mechanical operation Several front panel sealing options Several locking lever options
