Explore performance details, construction highlights, applications, and technical information in one clear overview.

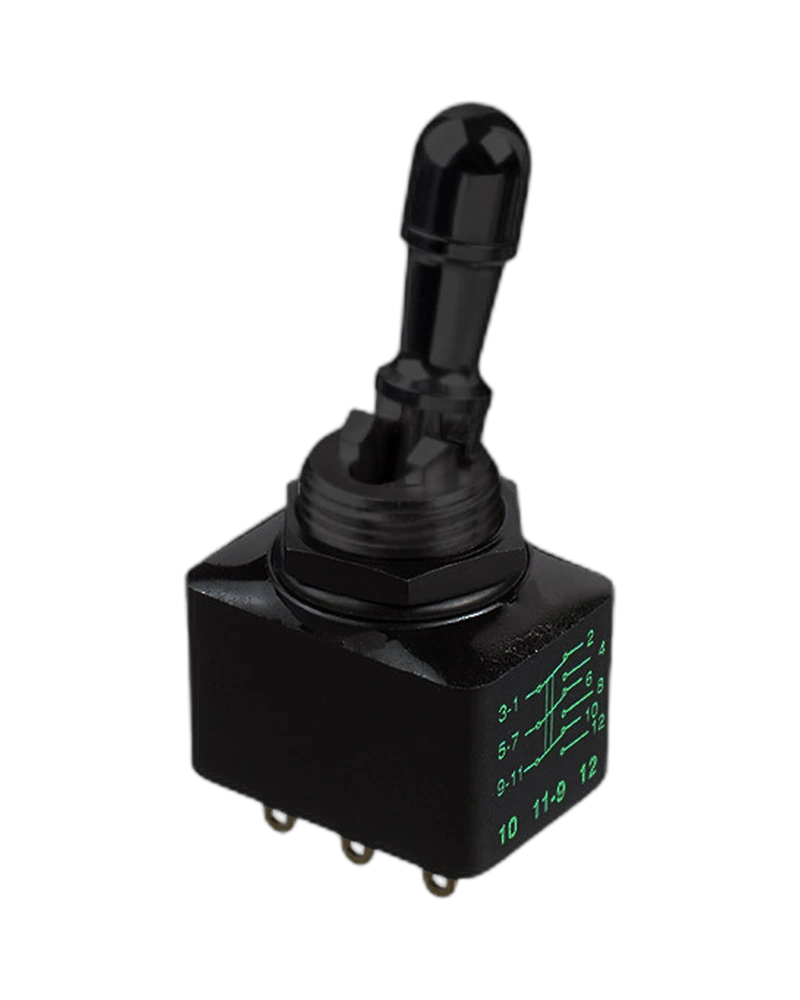

The APEM Panel Switches 12159-11VX778 is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: ON OFF ON Fluorescent Tip: None Levers: Functions 8, 9, 44 Terminals And Bushing: Solder Lug Terminals X778: High Performance Fully Sealed Black Switches; Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut; Panel thickness: 8 mm (.314) max. - 3 mm (.118) min..
The Panel Switches 12159-11VX778 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
The APEMPanel Switches 12159-11VX778 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
