Panel Switches 12149AD2G-3V

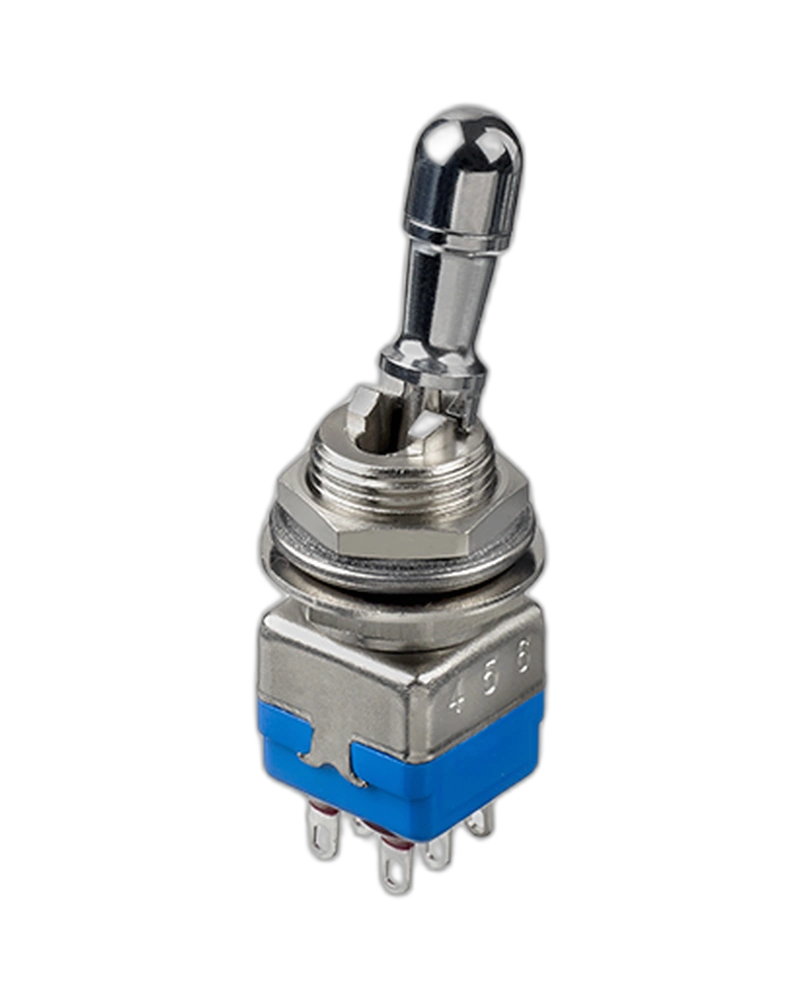

12149AD2G-3V Versatile 12149AD2G-3V Panel Switch with double pole configuration, three locked positions, and durable construction for reliable performance in various applications. Select Quantity
Key Features
- Number Of Poles: Double Pole
- Finish: Black Finish On Bushing Actuator and Hardware,Fluorescent Tip:None,Levers:3 Locked Positions
- Sealing: Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug Terminals,Special
- Options: No Special Requirement
- Electrical Functions: ON OFF ON
- Max. current/voltage rating with resistive load: - silver contacts (A-AD2-X780) : 4A 30VDC- gold contacts (D) : 100mA 30VDC Minimum load : AD2-X780-D contacts : 10mA 50mV, 10μA 5V min.
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Minimum load : AD2-X780-D contacts : 10mA 50mV, 10μA 5V min.
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max.
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max.
- Operating temperature: -40°C to +85°C
- Torque: 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard
- panel thickness: 4,5 mm (.177) max. Standard
- panel thickness: 4,5 mm (.177) max. CECC approved - conforms to MIL
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. |
| Operating temperature | -40°C to +85°C |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Number Of Poles | Double Pole |
