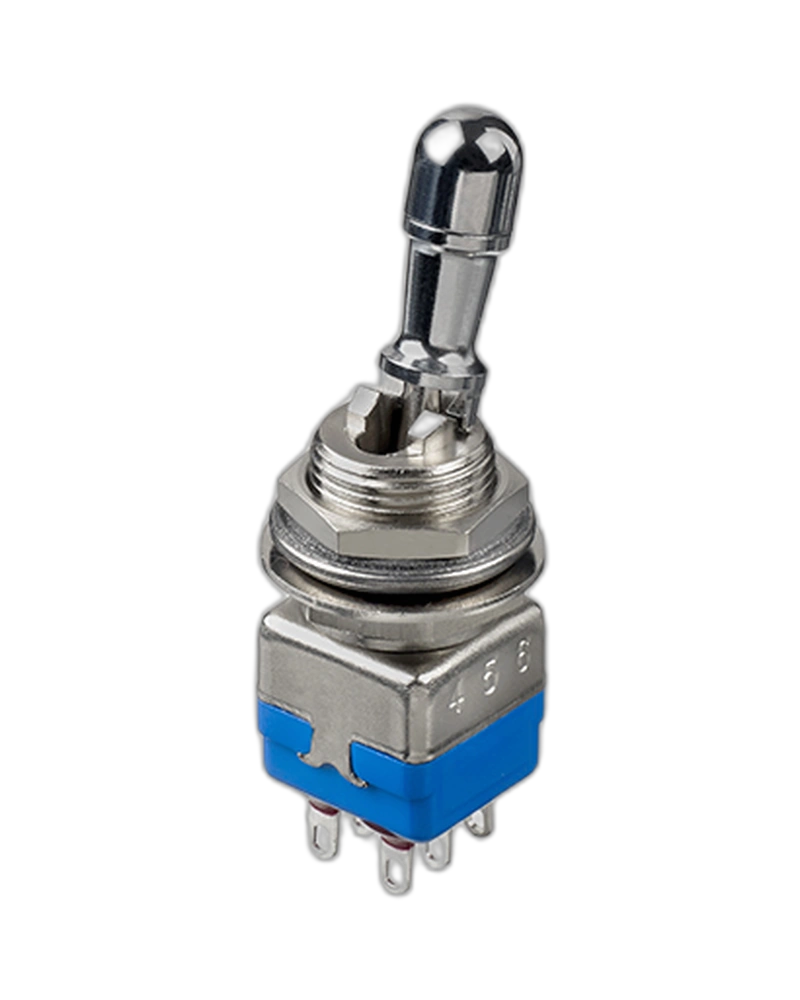

Panel Switches 12149A

12000 12149AD2G-038-5VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Epoxy Sealed Terminals 12000 12149AD2G-038-5VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Epoxy Sealed Terminals 12000 12165AG-038-2VX545 Finish : Black Finish On Bushing Actuator and Hardware Levers : 2 Locked Positions Sealing : Epoxy Sealed Terminals 12165AG-038-2VX545 Levers : 2 Locked Positions 12000 12268DG-17VX545CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Epoxy Sealed Terminals 12268DG-17VX545CECC 12000 12258AG-8V Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 9-44 Sealing : Epoxy Sealed Terminals 12258AG-8V Levers : Functions 9-44 12000 12156DGK-038-3VX822CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : 3 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12156DGK-038-3VX822CECC Levers : 3 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12000 12155AD2GK-2VX910 Finish : Black Finish On Bushing Actuator and Hardware Levers : 2 Locked Positions Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12155AD2GK-2VX910 12000 12266DGK-038-12VX408CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7 & 8 Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12266DGK-038-12VX408CECC Levers : Functions 7 & 8 12000 12246DG-038-20V Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 9-44 Sealing : Epoxy Sealed Terminals 12246DG-038-20V 12000 12268AD2GK-5VX408CECC Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12268AD2GK-5VX408CECC 12000 12145AGK-1VX910 Finish : Black Finish On Bushing Actuator and Hardware Levers : 1 Locked Position Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 12145AGK-1VX910 Levers : 1 Locked Position 12000 12158AG-17VX910 Finish : Black Finish On Bushing Actuator and Hardware Levers : Functions 7, 442R Sealing : Epoxy Seale

Key Features

• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce : 2 ms max. Contact bounce : 2 ms max.
• Operating temperature: -40°C to +85°C
• Torque: 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts Standard
• panel thickness: 4,5 mm (.177) max. The 12149A-3VX822CECC Panel Switch features solder lug terminals for easy and secure connections. It has a double pole configuration, providing enhanced electrical performance. With its ON OFF ON elect
• Finish: Bright Chrome Finish On Actuator,Fluorescent Tip:None,Levers:Functions 8, 9, 44, 441R
• Options: Bushing 15mm (0.590in)
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Robust switches for high specification environments Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Several locking lever options
• Robust switches for high specification environments Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options Several locking lever options
• The 12149A-16VX408 toggle switch features a double pole design with ON/OFF/ON functions, ensuring versatility and stability for industrial and electronic applications.
• Number Of Poles: Double Pole,Contact Materials:Silver
• Sealing: Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug Terminals,Special
• Electrical Functions: ON OFF ON
• CECC approved - conforms to MIL
• mechanical operation Several front panel sealing options Several locking lever options
• Several front panel sealing options Several locking lever options
• Several locking lever options
