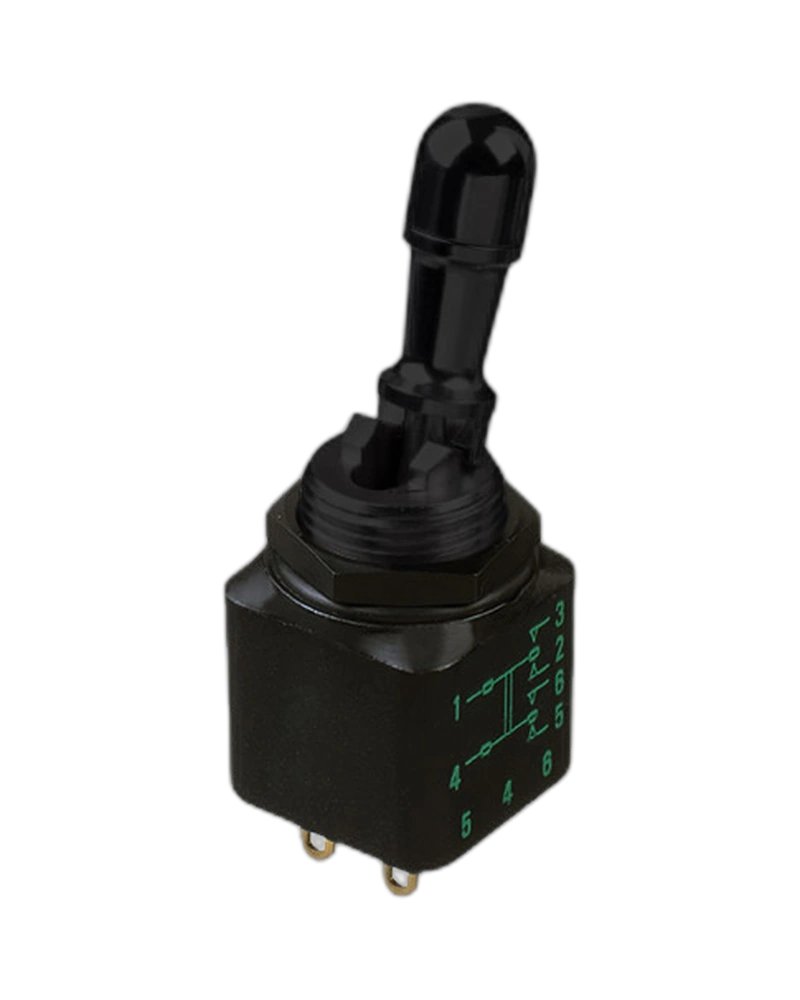

Panel Switches 12147-5VX778
The APEM Panel Switches 12147-5VX778 is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Double Pole,Fluorescent Tip:None,Levers:Functions 7, 442R,Terminals And Bushing:Solder Lug Terminals,X778:High Performance Fully Sealed Black Switches; Electrical life: - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom; Electrical Functions: MOM OFF MOM.
Key Features
- Number Of Poles: Double Pole,Fluorescent Tip:None,Levers:Functions 7, 442R,Terminals And Bushing:Solder Lug Terminals,X778:High Performance Fully Sealed Black Switches
- Electrical life: - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom
- Sealing: Panel sealed up to IP67, these switches are frontal sealed by two O-rings and have full rear end sealing.
- Contacts: Highly reliable contacts suitable for low level applications (10mA 50mV - 10μA 5VDC min.) or power applications (4A 30VDC max.)
- 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R)
- 150,000 cycles (switches with 2 maintained positions)
- 100,000 cycles (switches with 3 maintained positions)
- 50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)
- © 2026 APEM SAS
- Electrical Functions: MOM OFF MOM
- Double shell case: For high mechanical strength and high electrical insulation.
- Compact size: The small rear end of the switch allows space saving behind the panel.
- Finish: Matt black finish on body, bushing, lever and hardware.
- Quality
- CECC approved - conforms to MIL
- specifications Highly reliable contacts Pinned lever Double shell case for high mechanical strength and highelectrical insulation Compact size
- specifications Highly reliable contacts Pinned lever Double shell case for high mechanical strength and high electrical insulation Compact size
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Operating temperature | -40°C |
