Panel Switches 12147-038X778CECC

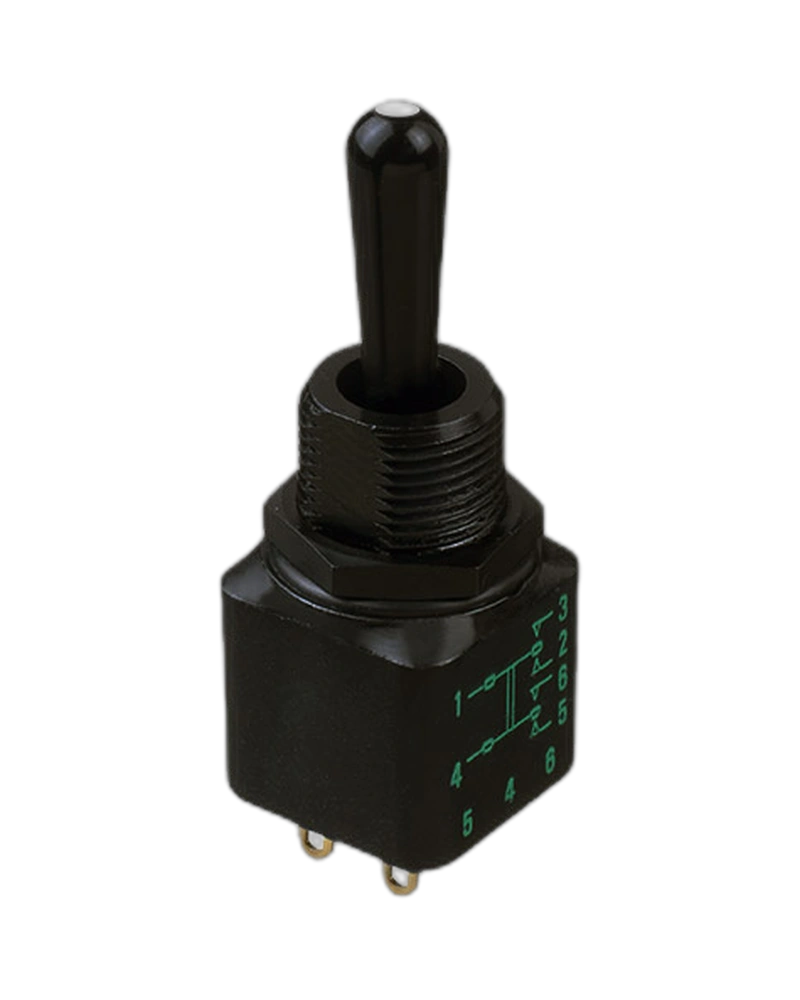

The 12147-038X778CECC Panel Switch features a double pole design with MOM OFF MOM functionality for momentary operation, ensuring reliable performance and intuitive use. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals2.000 Vrms 50 Hz min. between poles Contact bounce : 2 ms max. Minimum load : 10mA 50mV, 10μA 5VDC
- Operating temperature: -40°C to +85°C Humidity test : 56 days, 93 % R.H., 40°C (IEC 68-2-3) Salt spray test : 96 hours (IEC 68-2-11) Front panel sealing by two O-rings Flatted bush for precise orientation Panel seal withstands 1 bar pressure a
- Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 8 mm (.314) max. - 3 mm (.118) min.
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Electrical life: - At 4A 28VDC :20.000 cycles (10.000 for functions 5, 4-1R, 4-2R)- At low level (50mV 10mA) :150.000 cycles (switches with 2 maintained positions)100.000 cycles (switches with 3 maintained positions)50.000 cycles (moment
- Max. current/voltage rating with resistive load: 4A 28VDC Minimum load : 10mA 50mV, 10μA 5VDC
- Front panel sealing by two O-rings Flatted bush for precise orientation Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated. Epoxy sealed terminals Splash-proof case
- Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated. Epoxy sealed terminals Splash-proof case
- User-supplied exact APEM product URL for Panel Switches 12147-038X778CECC
- Number Of Poles: Double Pole,Fluorescent Tip:White Fluorescent Tip-to-Lever,Levers:Standard,Terminals And Bushing:Solder Lug Terminals
- Electrical Functions: MOM OFF MOM
- Epoxy sealed terminals Splash-proof case
- Splash-proof case
- CECC approved - conforms to MIL
- Highly reliable contacts Pinned lever Double shell case for high mechanical strength and high electrical insulation Compact size
- Pinned lever Double shell case for high mechanical strength and high electrical insulation Compact size
- Double shell case for high mechanical strength and high electrical insulation Compact size
- electrical insulation Compact size
- Compact size
- The 12147-038X778CECC Panel Switch features a double pole design with MOM OFF MOM functionality for momentary operation, ensuring reliable performance and intuitive use.
- Highly reliable contacts Pinned lever Double shell case for high mechanical strength and highelectrical insulation Compact size
- Pinned lever Double shell case for high mechanical strength and highelectrical insulation Compact size
- Double shell case for high mechanical strength and highelectrical insulation Compact size
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Minimum load | 10mA 50mV, 10μA 5VDC |
