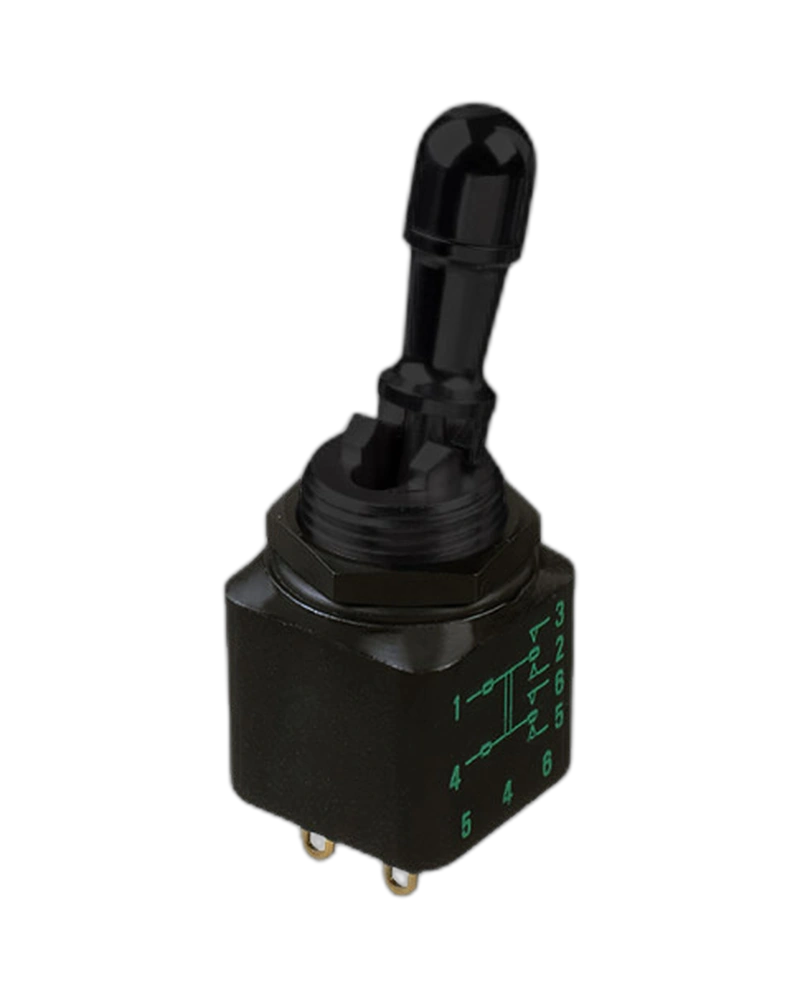

The APEM Panel Switches 12145-13VX778 is a double pole, fully sealed autoswitch designed for industrial applications. With high reliability, it offers electrical life up to 150,000 cycles at low levels (50mV 10mA) and operates within a temperature range of -40°C. Ideal for demanding environments requiring robust performance and long service life.
The APEM Panel Switches 12145-13VX778 is a high-performance, double pole autoswitch engineered for industrial use. Featuring a double shell case for enhanced mechanical strength and electrical insulation, this panel switch delivers exceptional reliability in harsh conditions. With a fully sealed design (IP67 rating) and solder lug terminals, it ensures robust performance in demanding environments while maintaining compatibility with low-level and power applications.
The APEM Panel Switches 12145-13VX778 delivers high electrical reliability with electrical life specifications: 20,000 cycles at 4A 28VDC, 150,000 cycles at low levels (50mV 10mA) for 2 maintained positions, and 100,000 cycles for 3 maintained positions. Contacts are highly reliable for both low-level (10mA 50mV - 10μA 5VDC min.) and power applications (4A 30VDC max.).
With an IP67 rating, these switches are fully sealed using two O-rings for frontal sealing and complete rear end sealing. This design ensures protection against dust, water, and harsh environmental conditions, making them suitable for industrial settings where reliability is critical.
The double shell case provides high mechanical strength and electrical insulation, while the compact size with a small rear end allows for space-saving installation behind panels. The matt black finish on the body, bushing, lever, and hardware ensures durability and a professional appearance.
Operating within a temperature range of -40°C, these switches are designed for extreme environments. The double pole configuration ensures safe operation in high-demand applications, while the solder lug terminals facilitate reliable connections in industrial setups.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Electrical Functions | ON MOM |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
The APEMPanel Switches 12145-13VX778 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Electrical Functions | ON MOM |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
