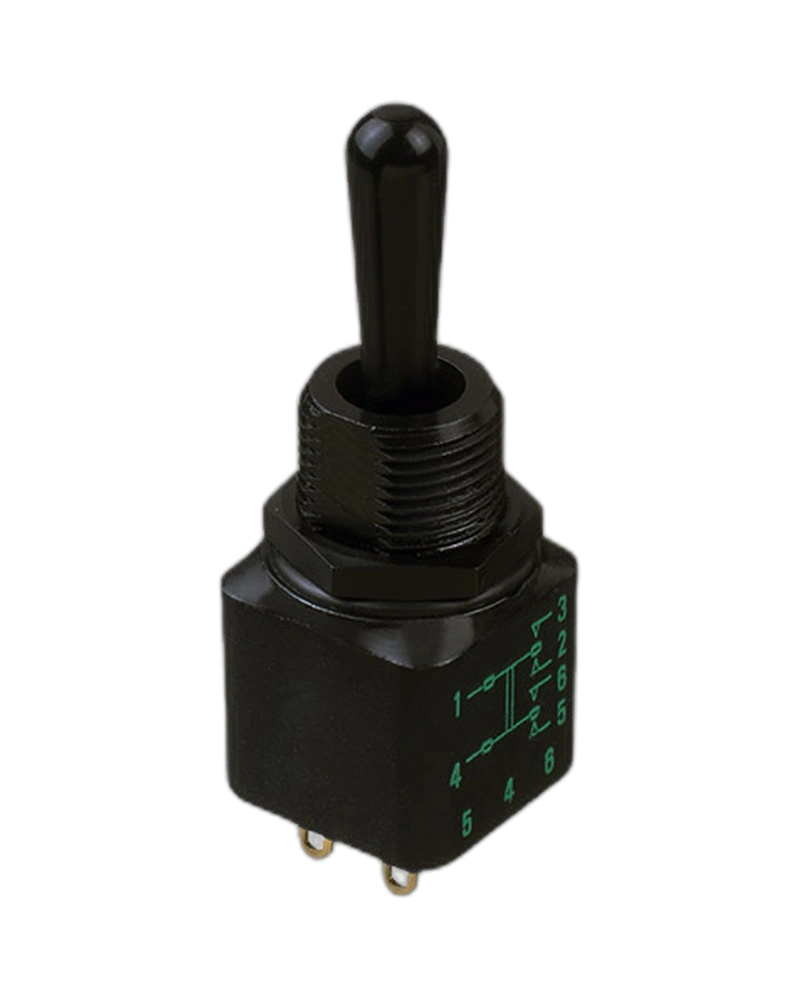

The APEM Panel Switches 121441RX778 is a Switches and Pushbutton with documented product-specific characteristics including Electrical Functions: ON ON ON Fluorescent Tip: None Levers: Standard Momentary For Function 4: ON ON MOM Terminals And Bushing: Solder Lug Terminals; Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut; Panel thickness: 8 mm (.314) max. - 3 mm (.118) min..
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 8 mm (.314) max. - 3 mm (.118) min. |
| Electrical life | - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (mom |
| Feature | Specification |
|---|---|
| Operating temperature | -40°C |
