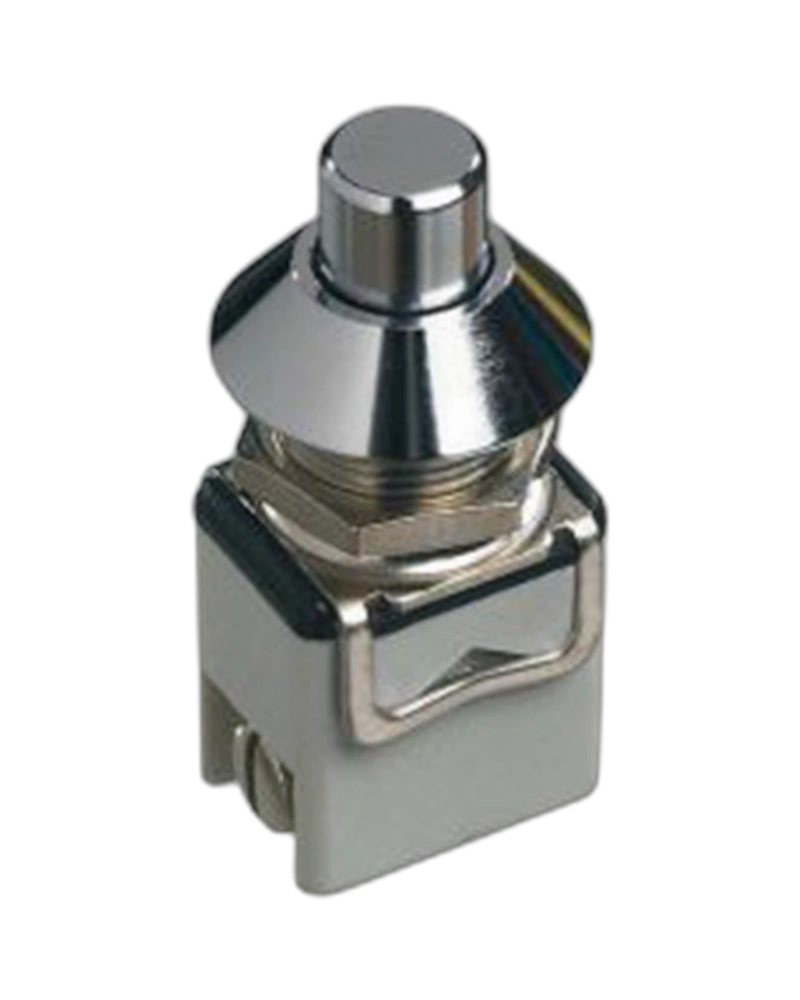

The APEM Panel Switches 1213MRC are robust autoswitches designed for industrial applications. These switches feature a 1,000 MΩ min. insulation resistance at 500 VDC, 2,000 Vrms dielectric strength, and 10 mΩ max. initial contact resistance. With electrical life of 10,000 cycles and operating temperatures from -20 °C to +55 °C, they provide reliable performance for demanding environments.
The APEM Panel Switches 1213MRC are precision-engineered autoswitches designed for high-reliability industrial control systems. Featuring butt action contacts with double break functionality, these switches deliver exceptional electrical safety and durability. With UL and CSA certifications, they ensure compliance with stringent international standards while maintaining robust performance across a wide temperature range from -20 °C to +55 °C. The switches are engineered for seamless integration into panel-mounted applications requiring precise switching with minimal contact resistance and high dielectric strength.
The Panel Switches 1213MRC deliver precise electrical performance with a minimum insulation resistance of 1,000 MΩ at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz between terminals. Initial contact resistance remains below 10 mΩ, ensuring minimal voltage drop during operation. These switches support electrical life of 10,000 cycles at full load, making them suitable for applications requiring frequent switching without degradation.
Engineered to withstand extreme environmental conditions, these switches operate effectively within a temperature range of -20 °C to +55 °C. This wide operational range ensures reliable performance in both cold and hot industrial environments, from refrigeration systems to high-temperature manufacturing processes.
The Panel Switches 1213MRC utilize solder lug quick connect terminals for straightforward installation and maintenance. Their butt action contacts with double break functionality provide superior electrical isolation and reduce the risk of arcing during switching operations, enhancing safety and longevity.
These switches are rated for specific current and voltage applications with resistive loads. Silver contacts support up to 4 A 250 VAC or 8 A 125 VAC AC loads, while silver-plated copper contacts handle up to 2 A 250 VAC or 3 A 125 VAC AC loads. The precise ratings ensure compatibility with a variety of industrial control circuits without compromising safety.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. |
| Total travel | NO : 4.5 mm (.177) +/- 0.3 (.011)NC : 3.5 mm (.137) +/- 0.3 (.011) |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 VDC- silver plated copper contacts (C) : 2 A 250 VAC - 3 A 125 VAC - 2 A 14 VDC - 3 A 12 VDC |
| Electrical Functions | Normally Open (NO) |
The APEMPanel Switches 1213MRC is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. |
| Total travel | NO : 4.5 mm (.177) +/- 0.3 (.011)NC : 3.5 mm (.137) +/- 0.3 (.011) |
| Operating temperature | -20 °C to +55 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 VDC- silver plated copper contacts (C) : 2 A 250 VAC - 3 A 125 VAC - 2 A 14 VDC - 3 A 12 VDC |
| Electrical Functions | Normally Open (NO) |
