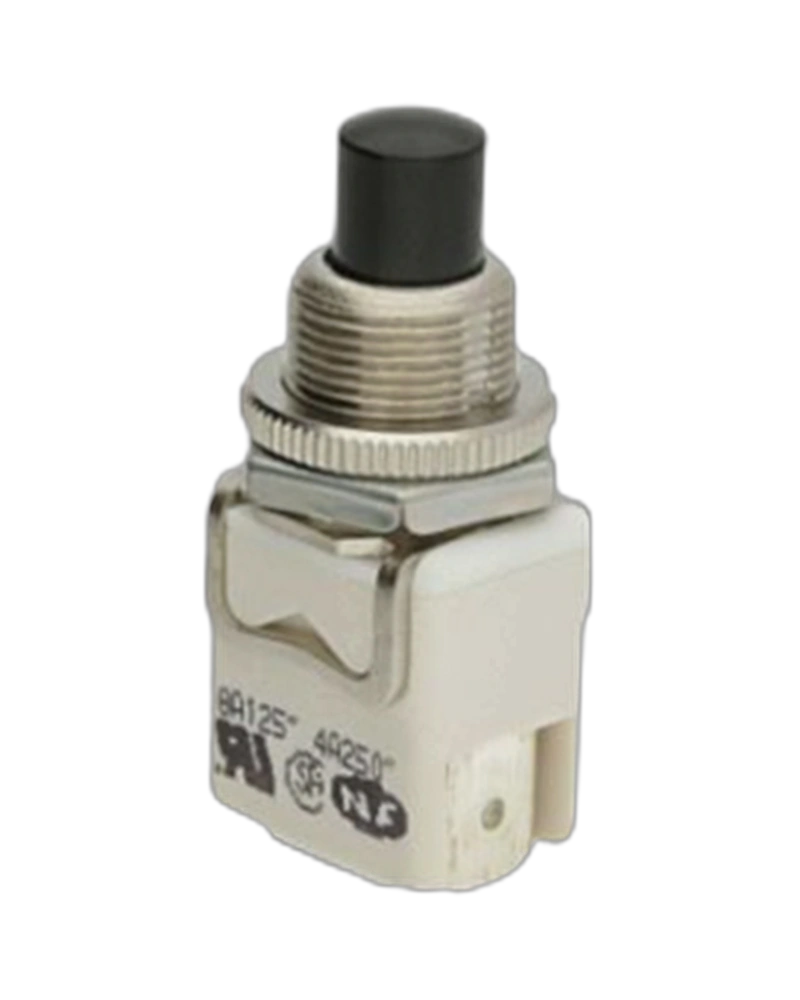

1213A6 1213A6 Panel Switch: A reliable normally open push button switch with a sleek design and efficient operation, ideal for various electrical applications. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. |
| Operating temperature | -20 °C to +55 °C |
| Total travel | NO : 4.5 (.177) +/- 0.3 (.011)NC : 3.5 (.137) +/- 0.3 (.011) Butt action contacts Double break NF (EN 61058-1), UL and CSA approved Double break NF (EN 61058-1), UL and CSA approved NF (EN 61058-1), UL and CSA approved D |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 4 A 250 VAC - 8 A 125 VAC - 4 A 24 VDC - 8 A 12 VDC- silver plated copper contacts (C) : 2 A 250 VAC - 3 A 125 VAC - 2 A 24 VDC - 3 A 12 VDC |
| Electrical Functions | Normally Open (NO) |
