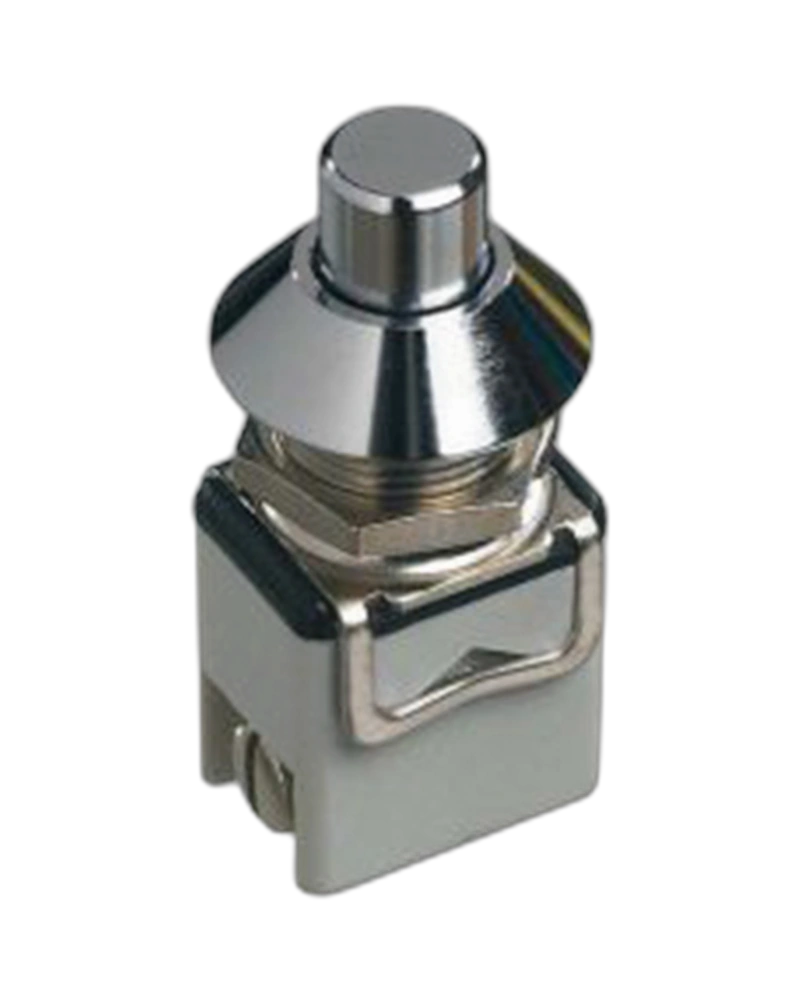

1202MA Reliable 1202MA Panel Switch with normally closed feature for secure and efficient operation. Part of the Pushbutton Switches category. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. |
| Total travel | NO : 4.5 mm (.177) +/- 0.3 (.011)NC : 3.5 mm (.137) +/- 0.3 (.011) |
| Initial contact resistance | 10 mΩ max. |
| Electrical life | 10,000 cycles at full load |
| Operating temperature | -20 °C to +55 °C |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. |
| Total travel | NO : 4.5 mm (.177) +/- 0.3 (.011)NC : 3.5 mm (.137) +/- 0.3 (.011) |
| Operating temperature | -20 °C to +55 °C |
