Explore performance details, construction highlights, applications, and technical information in one clear overview.

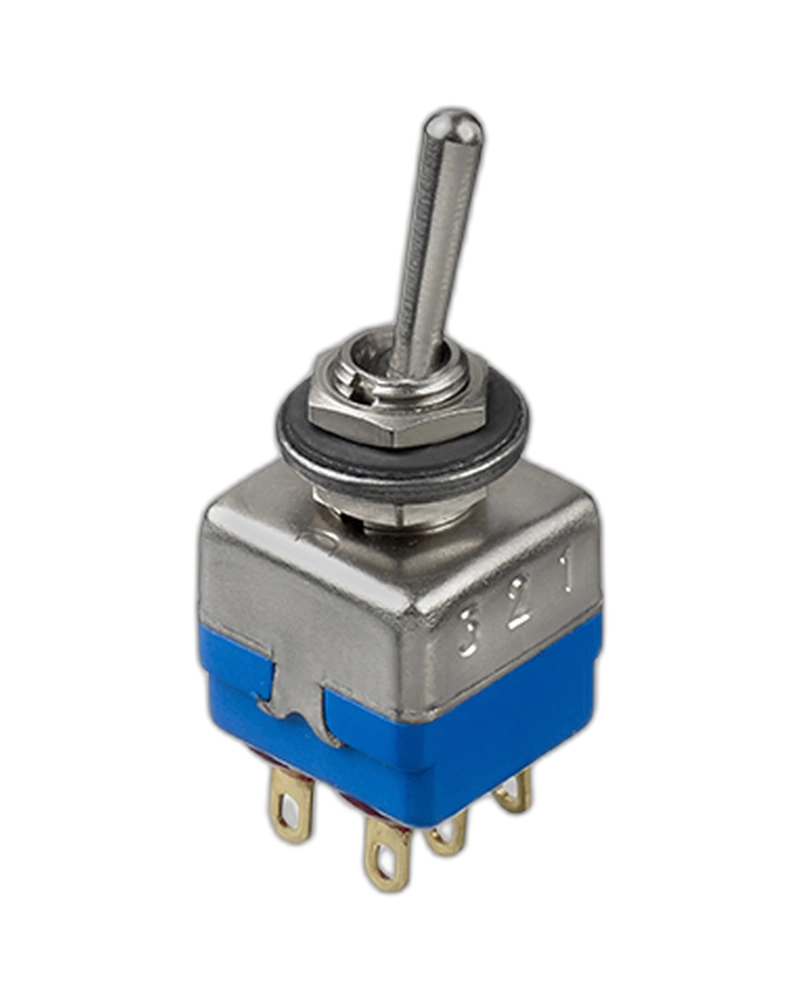

The APEM Panel Switches 11149AD2K is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Double Pole; Finish: Nickel-Plated,Levers:Standard; Options: No Special Requirement.
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Specifications Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Initial contact resistance | 10 mΩ max. |
| connection | terminals and bushings. |
| Feature | Specification |
|---|---|
| Options | No Special Requirement |
| Electrical Functions | ON OFF ON |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Specifications Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| connection | terminals and bushings. |
