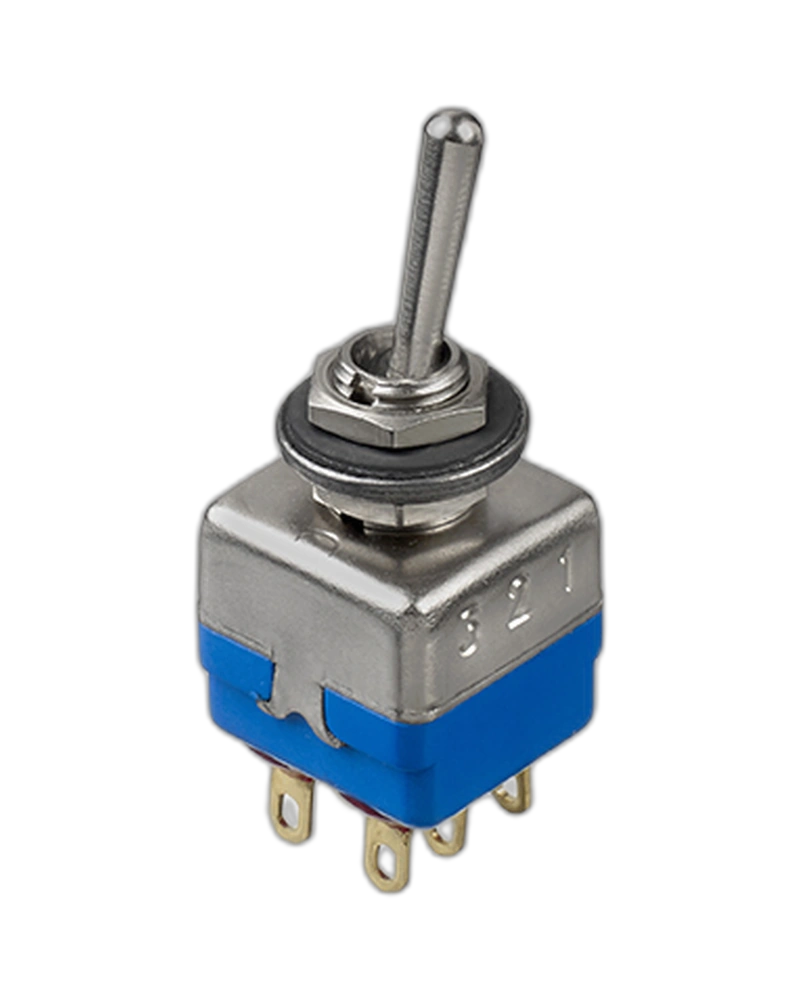

The 11146D Panel Switch features a double pole design for enhanced functionality and safety, ideal for controlling lights, motors, and other devices with ease. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max Contact bounce: 2 ms max |
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts Standard |
| panel thickness | 2.5 mm (.098) max. CECC approved Robust switches for high specification environments Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options Robust switches for high speci |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Options | No Special Requirement |
| Electrical Functions | ON ON |
