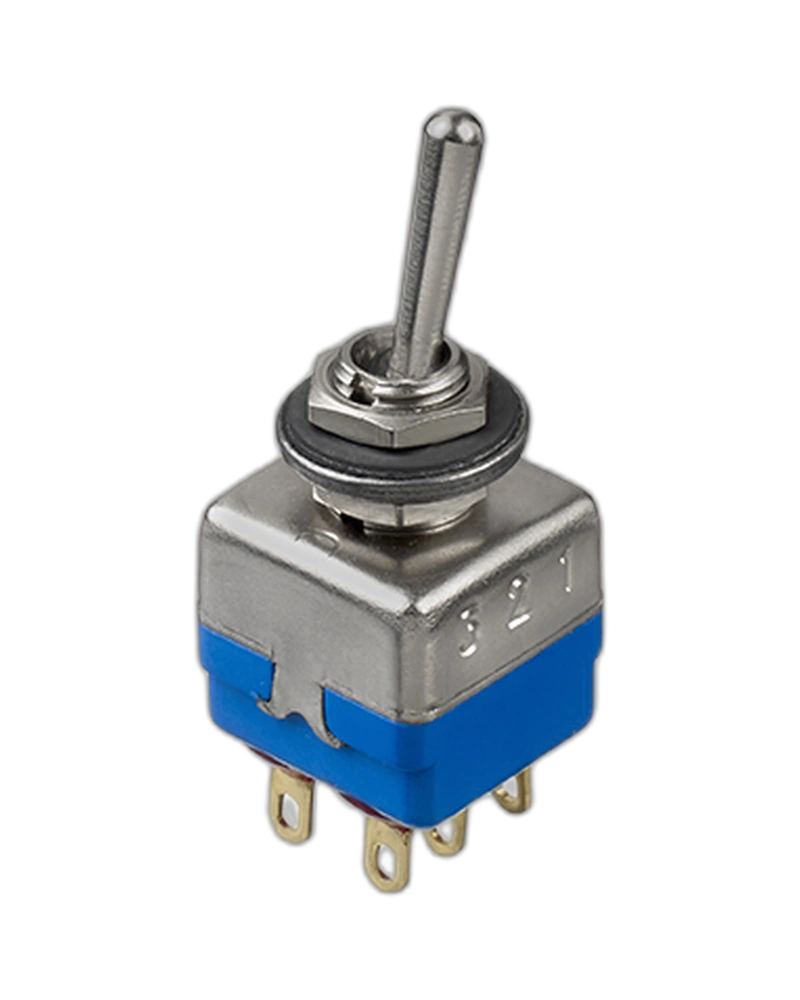

The APEM Panel Switches 11146AD2 are robust double-pole autoswitches designed for high-specification environments. Featuring CECC approval, nickel-plated levers, cylindrical design, epoxy sealed terminals, and solder lug or right-angle terminals, these switches operate reliably across -40°C to +85°C temperatures with a maximum initial contact resistance of 10 mΩ.

Product Overview

The APEM Panel Switches 11146AD2 are CECC-approved robust double-pole autoswitches engineered for demanding industrial environments. These switches deliver smooth mechanical operation through toggle action on 2-position models, with multiple front panel sealing options including epoxy sealed terminals and solder lug or right-angle terminals. Designed for high-temperature resilience, they maintain reliable performance across an operating range of -40°C to +85°C (-40°F to 185°F) while meeting stringent electrical standards with an initial contact resistance of 10 mΩ max.

Environmental Performance

Engineered for extreme temperature conditions, the APEM Panel Switches 11146AD2 operate reliably across -40°C to +85°C (-40°F to 185°F). This wide temperature range ensures consistent performance in both harsh cold environments and high-heat industrial settings without compromising electrical integrity or mechanical stability.

Electrical Specifications

The switches feature a maximum initial contact resistance of 10 mΩ, ensuring low electrical resistance during operation. Their double-pole configuration allows for simultaneous control of two circuits, while the ON ON electrical function provides direct switching capability without intermediate states.

Sealing and Protection

Front panel sealing options include one O-ring and sealing washer for enhanced environmental protection. Epoxy sealed terminals and solder lug or right-angle terminals provide robust connections that resist corrosion and mechanical stress, making them suitable for high-specification environments.

Mechanical Operation

The toggle action on 2-position models delivers smooth mechanical operation, reducing wear and tear during repeated use. Nickel-plated cylindrical levers ensure precise, durable switching with minimal friction, ideal for applications requiring frequent operation.

Technical Specifications

Specifications

Product Summary

The APEMPanel Switches 11146AD2 is presented using the documented product characteristics available for this model.
