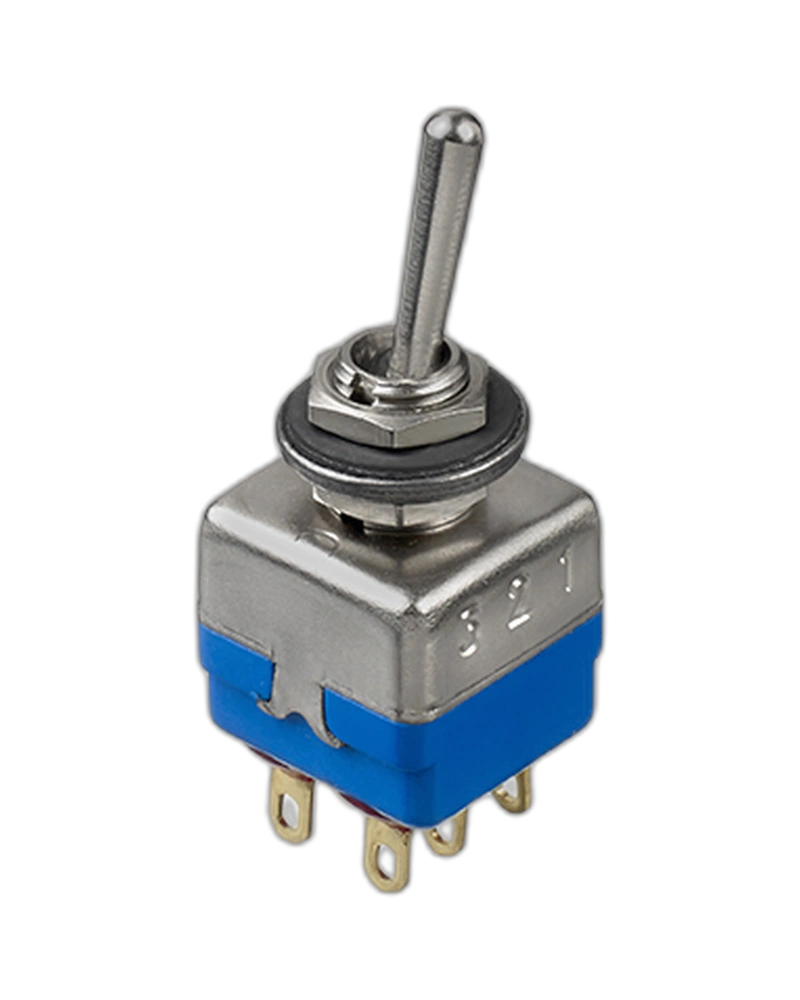

The APEM Panel Switches 11146A-26X408 is a CECC-approved robust double-pole switch with silver contacts, nickel-plated finish, and cylindrical levers. Designed for high-specification environments, it features epoxy sealed terminals, solder lug or right-angle terminals, and front panel sealing with two O-rings for reliable operation across temperatures from -40°C to +85°C.

Product Overview

The APEM Panel Switches 11146A-26X408 delivers high-reliability performance in demanding industrial settings with its CECC-approved robust construction. This double-pole switch features silver contacts and a nickel-plated finish, ensuring long-term durability and smooth mechanical operation. Engineered for high-specification environments, it includes epoxy sealed terminals, solder lug or right-angle terminals, and front panel sealing with two O-rings to protect against environmental factors. The switch operates effectively across a wide temperature range from -40°C to +85°C and is designed for applications requiring precise electrical control with a toggle action on 2-position models.

Environmental Specifications

The APEM Panel Switches 11146A-26X408 operates reliably across an extreme temperature range of -40°C to +85°C (-40°F to 185°F), making it suitable for harsh industrial environments. This wide operating range ensures consistent performance in both cold and hot conditions, from Arctic conditions to high-temperature industrial processes.

Electrical Characteristics

This double-pole switch features silver contact materials for excellent conductivity and long service life. The electrical functions are ON ON, providing a simple and reliable control path for both poles. The switch is designed for high-specification applications where precise electrical control is critical.

Sealing and Protection

The front panel sealing option includes two O-rings, providing robust environmental protection against dust, moisture, and other contaminants. Epoxy sealed terminals ensure reliable electrical connections and prevent terminal corrosion, even in challenging conditions.

Construction and Materials

Constructed with a nickel-plated finish and cylindrical levers, the switch offers smooth mechanical operation and resistance to corrosion. The use of solder lug or right-angle terminals ensures secure and reliable terminal connections, suitable for high-vibration environments.

Technical Specifications

Specifications

Product Summary

The APEMPanel Switches 11146A-26X408 is presented using the documented product characteristics available for this model.
