Explore performance details, construction highlights, applications, and technical information in one clear overview.

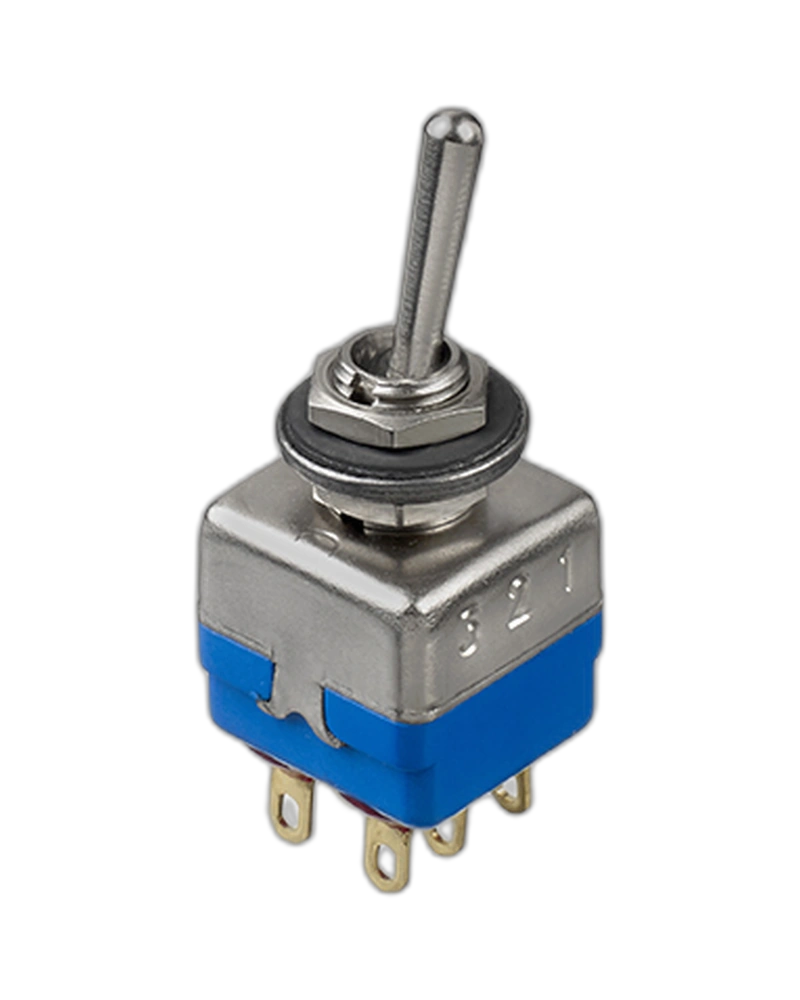

The APEM Panel Switches 11138AD2GK is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame; Torque: 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| Initial contact resistance | 10 mΩ max. |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Number Of Poles | Single Pole |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
