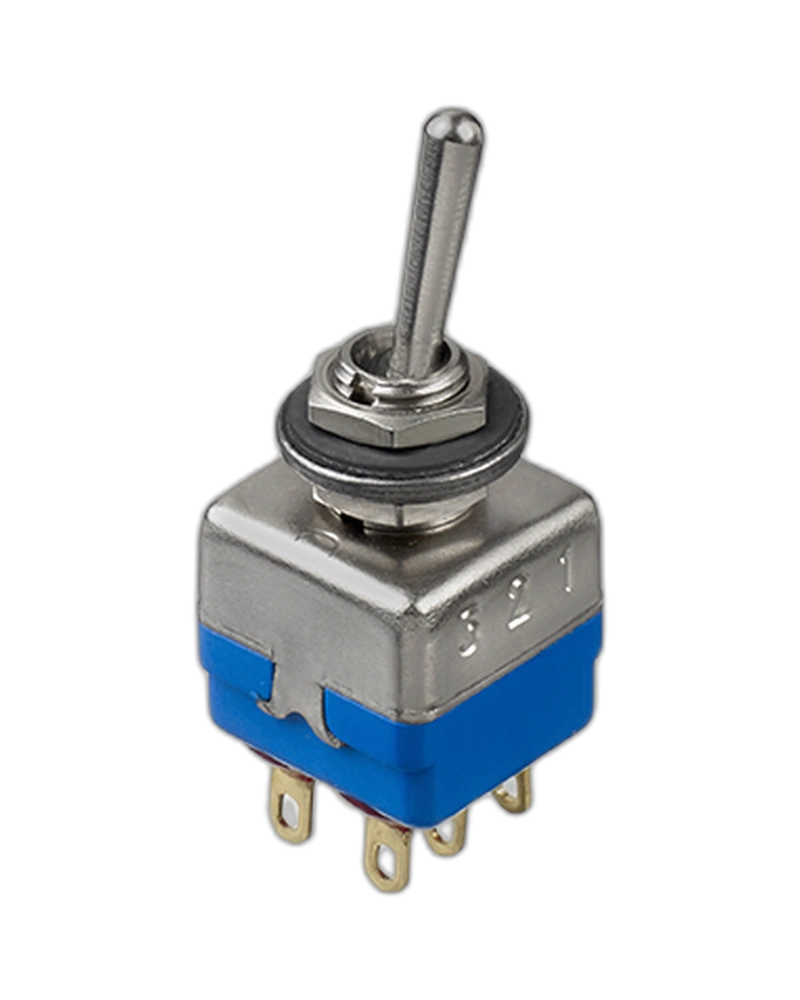

The APEM Panel Switches 11137AD2X408 is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Single Pole; Finish: Nickel-Plated,Levers:Standard; Sealing: Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max |
| Initial contact resistance | 10 mΩ max. |
| Feature | Specification |
|---|---|
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts Standard |
| panel thickness | 2.5 mm (.098) max. |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max |
| Feature | Specification |
|---|---|
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts Standard |
| panel thickness | 2.5 mm (.098) max. |
| Feature | Specification |
|---|---|
| Sealing | Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special |
| Electrical Functions | MOM OFF MOM |
