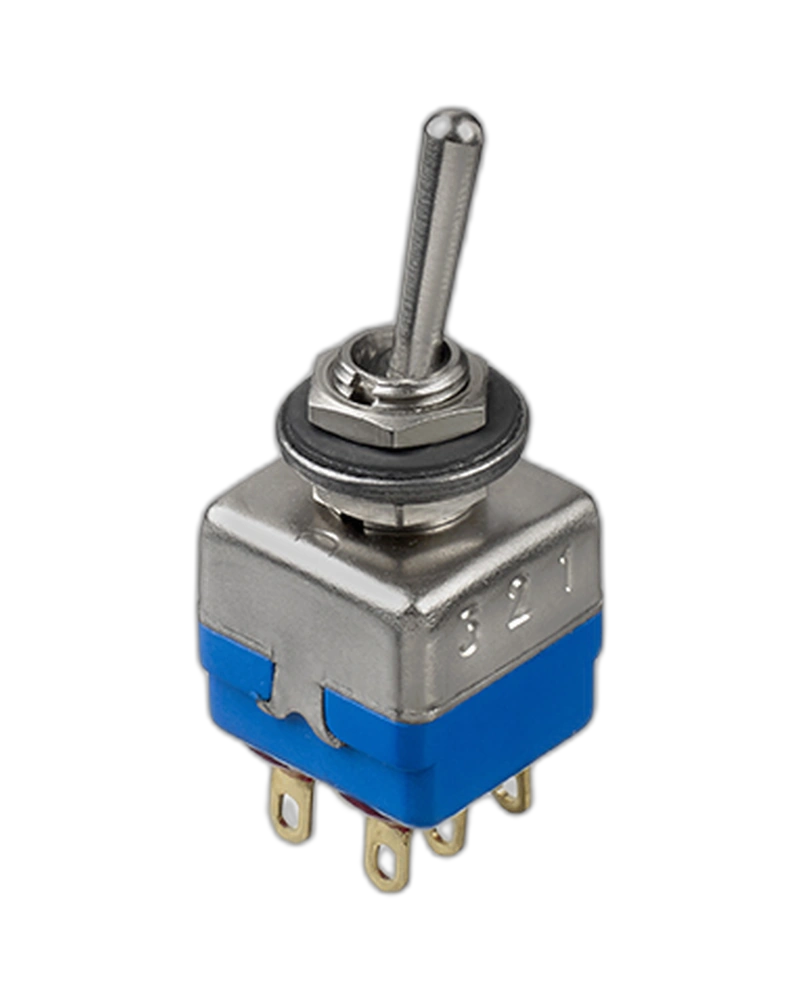

Panel Switches 11136AG
The APEM Panel Switches 11136AG is a Switches and Pushbutton with documented product-specific characteristics including Finish: Black; Electrical Functions: ON - ON Series: 11 Terminals And Bushings: Solder lug or right angle; Number Of Poles: Single Pole,Contact Materials:Silver.
Key Features
- Finish: Black
- Electrical Functions: ON - ON Series: 11 Terminals And Bushings: Solder lug or right angle
- CECC approved Robust switches for high specification environments Toggle action on 2-position models for a smooth mechanical operation Several front panel sealing options
- CECC approved Robust switches for high specification environments Toggle action on 2-position models for a smoothmechanical operation Several front panel sealing options
- Number Of Poles: Single Pole,Contact Materials:Silver
- Sealing: Epoxy Sealed Terminals,Terminals And Bushing:Solder Lug or Right Angle,Special
- Options: Switches for Peak Currents - Double Pole
- Terminals: Solder Lug or Straight PC,Special
Technical Specifications
Electrical Specifications
| Feature | Specification |
|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles and between terminals and frame Contact bounce: 2 ms max |
| Initial contact resistance | 10 mΩ max. |
Environmental Specifications
| Feature | Specification |
|---|
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
General Specifications
| Feature | Specification |
|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts Standard |
| panel thickness | 2.5 mm (.098) max. |
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Specifications Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
