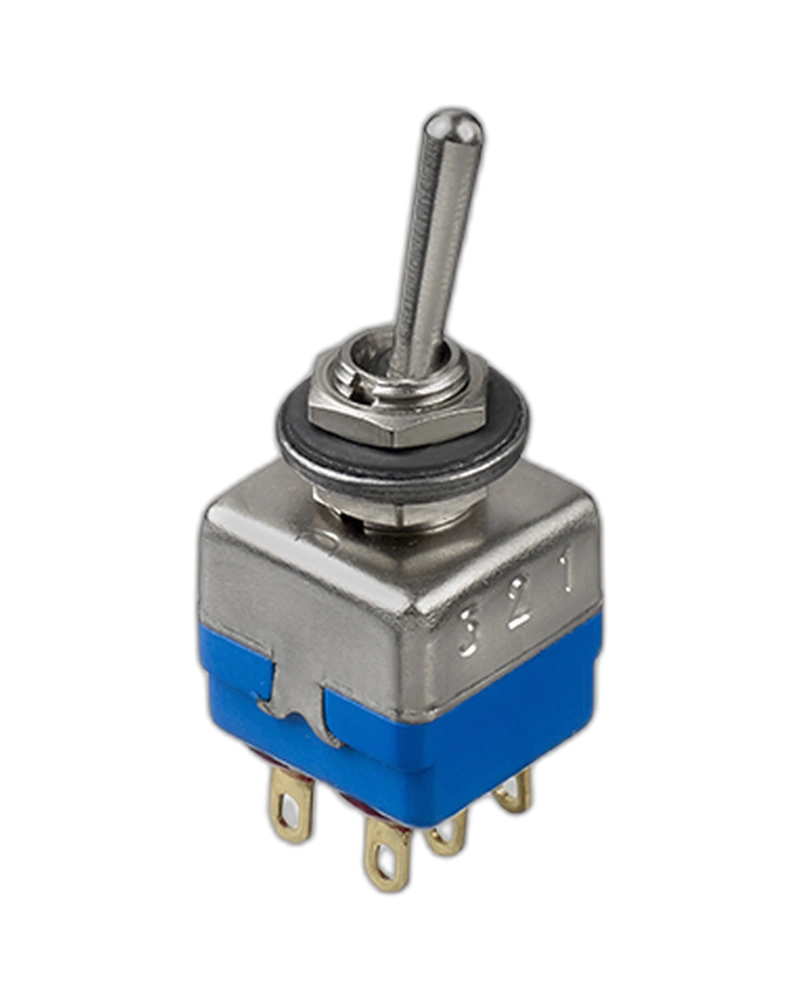

The APEM Panel Switches 11136AD2K is a robust single-pole autoswitch designed for high-specification environments. Featuring nickel-plated levers, a toggle action for smooth mechanical operation on 2-position models, and CECC approvals for -40°C to +85°C operation, these switches offer reliable performance in demanding industrial applications. With front panel sealing options and solder lug or straight PC terminals, they ensure durability and ease of integration.
The APEM Panel Switches 11136AD2K is a single-pole autoswitch engineered for high-specification industrial environments. This robust switch delivers reliable operation across extreme temperature ranges (-40°C to +85°C) and features a toggle action for smooth mechanical operation on 2-position models. Constructed with a plastic material that provides high insulation resistance, it is CECC approved for robust performance in harsh conditions. The switch includes front panel sealing with one O-ring and sealing washer, ensuring protection against environmental factors while maintaining compatibility with solder lug or straight PC terminals for secure installation.
Engineered for extreme conditions, these switches maintain reliable operation across a wide temperature range (-40°C to +85°C). The CECC 96201-005 and CECC 96201-008 approvals ensure compliance with stringent industrial standards, making them suitable for high-specification environments where durability is critical.
Front panel sealing options include one O-ring and sealing washer, providing effective protection against dust, moisture, and other environmental factors. This design ensures long-term reliability in industrial settings without compromising operational performance.
The switch supports solder lug or straight PC terminals for secure and reliable electrical connections. Its robust construction and high insulation resistance make it compatible with a wide range of industrial applications, ensuring seamless integration into existing systems.
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| panel thickness | 2.5 mm (.098) max. |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer |
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Specifications Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Operating temperature | -40 °C |
The APEMPanel Switches 11136AD2K is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Torque | 1.25 Nm (.92 Ft.lb) max. applied between the 2 nuts |
| panel thickness | 2.5 mm (.098) max. |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer |
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Specifications Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Operating temperature | -40 °C |
