The APEM Panel Switches 10600 is a Switches and Pushbutton with documented product-specific characteristics including panel thickness: 4 mm (.157) Aug 16, 2024 · The 10600 series is a CECC approved single pole and double pole toggle switches including a 10mm diameter threaded bushing.; 1.90 070): 1.10 (.043); Insulation resistance: 1,000 MΩ min. at 500 VDC.

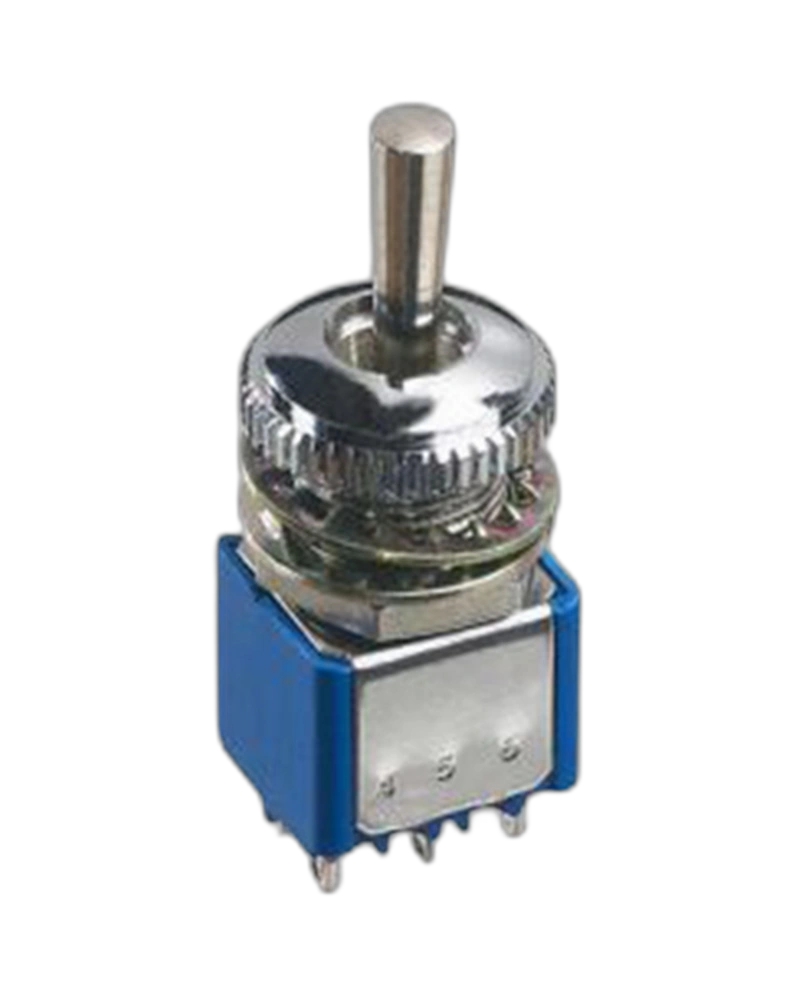

10600-1711 10600 series SWITCHES Professional toggle switches • PANEL threaded bushing Ø 10 mm
| Feature | Specification |
|---|---|
| 1.90 070) | 1.10 (.043) |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Torque | 1.50 Nm (1.106 Ft.lb) max. applied to nut |
| Minimum load | 100 µA 10 mV |
| Initial contact resistance | 10 mΩ max. |
| Electrical life | 50,000 cycles |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Case | diallylphthalate (DAP) or high temperature plastic material |
| Actuator | brass, nickel plated |
| Housing | stainless steel |
| Feature | Specification |
|---|---|
| panel thickness | 4 mm (.157) Aug 16, 2024 · The 10600 series is a CECC approved single pole and double pole toggle switches including a 10mm diameter threaded bushing. |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Torque | 1.50 Nm (1.106 Ft.lb) max. applied to nut |
| Operating temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Housing | stainless steel |
